Oracle SPARC M6-32 Server

Extreme Price/Performance. In-Memory Computing. Powered by the new SPARC M6 processors, the SPARC M6-32 server is Oracle's big memory machine. With up to 32 terabytes of memory for running workloads completely in-memory, the SPARC M6-32 server delivers.
Oracle SPARC M6-32 ServerOracle SPARC M6-32 Server
Manufacturer Oracle Sun
Part Number(s): SPARC-M6-32

IN STOCK; READY TO MOVE


Adirondack Networks offers complete configurations as well as individual parts and upgrades for this system.
Contact us for the lowest pricing on new or used Oracle SPARC M6-32 Servers, options or parts.

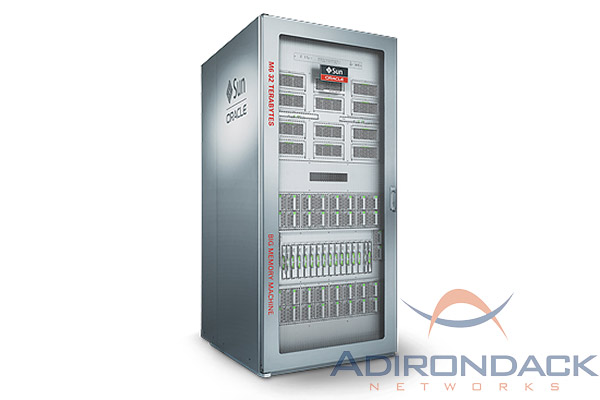

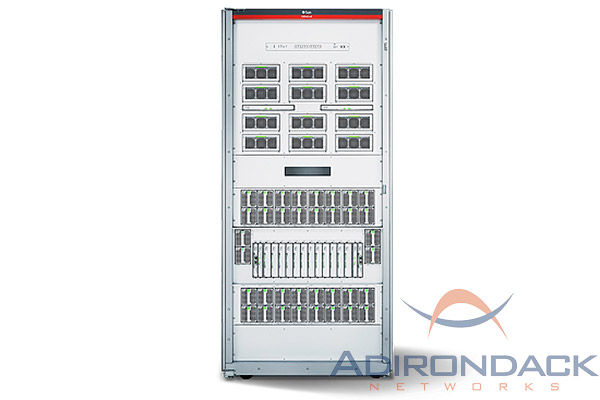

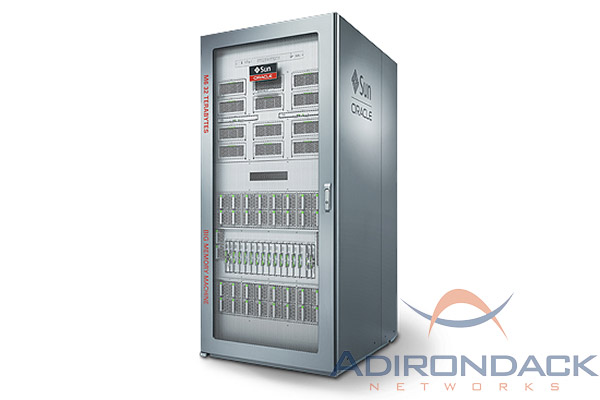

Oracle SPARC M6-32 Server Back View Oracle SPARC M6-32 Server Side View

About the Oracle SPARC M6-32 Server

The SPARC M6-32 server is the largest scale and highest availability enterprise server of Oracle’s SPARC portfolio. The SPARC M6-32 big memory server is designed to meet current and future mission-critical workload requirements by utilizing a highly configurable server enclosure that is optimized for reliability, availability, and serviceability. The SPARC M6-32 server can expand up to 32 processors, 32 TB of system memory, 32 internal disk storage devices, and 64 PCIe 3.0 I/O expansion slots. With the SPARC M6 processor including 12 cores and an extra large shared 48 MB level 3 cache, the SPARC M6-32 server doubles the system throughput performance from the previous SPARC M5-32 server. Unmatched system virtualization capabilities on the SPARC M6-32 server include Dynamic Domain hardware partitions, and Oracle VM Server for SPARC logical domains. Additionally, Oracle Solaris Zones can be used with both Dynamic Domains and Oracle VM Server for SPARC logical domains for greater workload isolation and increased system utilization. Up to four Dynamic Domains are supported on the SPARC M6-32 server, and up to 512 logical domains can be created. All SPARC M6-32 server virtualization technologies are built-in at no additional cost, and introduce zero overhead.



Component List

BACKPLANE/CENTERPLANE
OPTION # PART # DESCRIPTION
n/a 7060907 1  Midplane Assembly
  • 7047623
  • Midplane
n/a 7082149  Midplane Assembly
  • 7047623
  • Midplane
1 The FRU includes Torque Wrench 7066858, T20 Torx Bit 7066859, 14" Extension 7066860, and 13x17mm Wrench 7070900.
BATTERIES
OPTION # PART # DESCRIPTION
n/a 150-2850  3V Lithium Battery BR1632 / CR1632

CABLES
OPTION # PART # DESCRIPTION
X2121A-1M-N 530-4444  10Gbps QSFP to QSFP Cable, 1m
X2121A-2M 530-4567  10Gbps QSFP to QSFP Cable, 2m
X2121A-3M-N 530-4445  10Gbps QSFP to QSFP Cable, 3m
X2121A-5M-N 530-4446  10Gbps QSFP to QSFP Cable, 5m
X2130A-1M-N 530-4441  10Gbps SFP+ TwinX Cable, 1m
X2130A-3M-N 530-4442  10Gbps SFP+ TwinX Cable, 3m
X2130A-5M-N 530-4443  10Gbps SFP+ TwinX Cable, 5m
n/a 530-4599  Rear System Cable
n/a 7015285  Front System Link Cable
n/a 7015287  PDB to SCMP Link Cable, 858mm
n/a 7052031 4  I/O Power Cable
n/a 7056124  AC Power Cord, North America, 60A/250V, 3-Phase, 460P9W
n/a 7056129 5  AC Power Cord, Europe, 32A/415V, 3-Phase, 532P6W
n/a 7058395  PDB to Scalability Fan Cable
n/a 7060290  Scalability Chassis Negative DC Cable
n/a 7060291  Scalability Chassis Positive DC Cable
n/a 7060726  I/O Assembly Cable
n/a 7070228  Fan Power Cable
n/a 7088912  I/O Assembly Cable
n/a 7089312  I/O Assembly Cable
n/a 7089705  PDB to SCMP Link Cable, 883mm
CHASSIS
OPTION # PART # DESCRIPTION
n/a 7018760  Left EMI Plate
n/a 7023473  Right EMI Plate
n/a 7055985  Rear System Indicator Assembly
n/a 7070458  Rear Side Panel
n/a 7070459  Front Side Panel
n/a 7071157 3-inch Swivel Caster, 1200lb Load Rating
n/a 7073412  Scalability Cardcage Assembly
n/a 7077801  Front System Indicator Assembly
  • 530-4608
  • Keyswitch Assembly
n/a 7080855  Front/Rear Door
COMMUNICATION
OPTION # PART # DESCRIPTION
7104074 7092757  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
X4242A 375-3696  Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
7092767  Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
n/a 7046442  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
DISK BACKPLANE
OPTION # PART # DESCRIPTION
n/a 7058660 7  Disk Drive Cage Assembly, 1st Gen
  • 7047731
  • 4-Slot Disk Backplane
n/a 7074234 8  Disk Drive Cage Assembly, 2nd Gen
  • 7073701
  • 4-Slot Disk Backplane
DISKS
OPTION # PART # DESCRIPTION
7105214 7064135  600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
  • 7066795
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7107550 7077233  400GB Solid State SATA Drive Assembly
  • 7076379
  • 400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400]
  • 541-2123
  • Marlin 2.5" Bracket
7101469  7017184  300GB Solid State SATA Drive Assembly
  • 7017181
  • Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk)
  • 541-2123
  • Marlin 2.5" Bracket
ETHERNET
OPTION # PART # DESCRIPTION
7100477 7070195  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7100481 7070202  Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
7100488 7070006  Dual 10-Gigabit Base-T PCI Express Gen2
X1109A-Z 7051223  Dual 10-Gigabit PCI Express Ethernet SFP+ LP
X2124A-N 7326504  10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
X2129A-N 530-4449  10Gb/Sec Short Wave SFP+ Transceiver
X5562A-Z 135-1205  10Gb/Sec Long Wave SFP+ Transceiver
7105381  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7105382  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
SG-XPCIEFCOE2-Q-SR  7053422  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
SG-XPCIEFCOE2-Q-TA  7053423  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a 135-1204  10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a 375-3681  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR

FAN
OPTION # PART # DESCRIPTION
n/a 7061183  Upper Fan Duct Assembly
n/a 7061184  Lower Fan Duct Assembly
n/a 7065126  Fan Module (FM)
  • 7047468
  • Fan Control Board
  • 7065127
  • 80×80×76mm Fan Assembly
n/a 7083422  Fan Module (FM)
  • 7047468
  • Fan Control Board
  • 7065127
  • 80×80×76mm Fan Assembly
FIBRE CHANNEL
OPTION # PART # DESCRIPTION
7101674 7023303  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
7101676 7023325  Pair of 16Gbps Short Wave SFP+
  • 7023324
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101678 7023315  Pair of 10Gbps Short Wave SFP+
  • 7023316
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101684 7023036  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
7101686 7023059  Pair of 16Gbps Short Wave SFP+
  • 7023053
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
7101688  7023057  Pair of 10Gbps Short Wave SFP+
  • 7023046
  • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
7106958  7076907  8Gigabit/Sec PCI Express Dual FC Host Adapter, Qlogic
SG-XPCIE2FC-EM8-N  7053434  8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
I/O
OPTION # PART # DESCRIPTION
7106670 7074101 12  I/O Express Module SAS Base Assembly (EMS) / Base I/O Board, 2nd Gen
  • 7026282
  • I/O Enclosure
  • 7074099
  • I/O Express Module SAS Assembly (EMS)
    • 7073704
    • I/O Express Module SAS Board (EMS)
n/a 7054192  I/O Unit (IOU)
  • 7047637
  • I/O Unit Backplane Assembly
  • 7057065
  • I/O Unit Chassis Assembly
n/a 7057513  I/O Switch Board Assembly (IOB)
  • 7047726
  • I/O Switch Board
  • 7057029
  • I/O Switch Chassis
n/a 7058671 11  I/O Express Module SAS Base Assembly (EMS) / Base I/O Board, 1st Gen
  • 7026282
  • I/O Enclosure
  • 7058670
  • I/O Express Module SAS Assembly (EMS)
    • 7047471
    • I/O Express Module SAS Board (EMS)
n/a 7069813  PCI Express Carrier Assembly
  • 7068608
  • PCI Express Carrier Board
  • 7069815
  • PCI Express Carrier Enclosure
    • 351-0009
    • PCI Express Filler Panel, Low Profile
n/a 7086750  PCI Express Carrier Assembly
  • 7068608
  • PCI Express Carrier Board
  • 7086745
  • PCI Express Carrier Enclosure
    • 351-0009
    • PCI Express Filler Panel, Low Profile
n/a 7089095  PCI Express Carrier Enclosure
  • 351-0009
  • PCI Express Filler Panel, Low Profile
  • 7068608
  • PCI Express Carrier Board
  • 7084357
  • PCI Express Carrier Board
  • 7091851
  • PCI Express Carrier Enclosure
n/a 7314411  PCI Express Carrier Assembly
  • 7068608
  • PCI Express Carrier Board
  • 7084357
  • PCI Express Carrier Board
  • 7090454
  • PCI Express Carrier Enclosure
  • 7091851
  • PCI Express Carrier Enclosure
  • 7314409
  • PCI Express Filler Panel, Low Profile
  • 7314410
  • PCI Express Carrier Enclosure
MEMORY
OPTION # PART # DESCRIPTION
7104493 7049083  16GB Registered DIMM
7104495 7049085  32GB Registered DIMM
n/a 330-4839 Memory Slot Filler
MISCELLANEOUS
OPTION # PART # DESCRIPTION
7106668 7058279  Clock Board Assembly (CLK)
  • 7053370
  • Clock Board Enclosure
  • 7057830
  • Clock Board
n/a 7025883  I/O Cable Management Assembly (CMA)
n/a 7053631  Scalability Switch Board Assembly (SSB)
  • 7053445
  • Switch Board Enclosure
  • 7056760
  • Scalability Switch Board (SSB)
n/a 7060909  Scalability Assembly
  • 7047564
  • System ID Board
  • 7066445
  • Scalability Assembly
POWER
OPTION # PART # DESCRIPTION
n/a 7055066  Power System Distribution Board Assembly (PSDB)
  • 7047630
  • Power System Distribution Board (PSDB)
  • 7055065
  • Power System Distribution Board Enclosure
n/a 7061080 14  Bus Bar Crown Clip Installation Kit [SKU]
  • 7010239
  • Bus Bar Crown Clip, Tyco 1926671-1 (x6)
n/a 7061185  Power Supply Cage Assembly
n/a 7061187  Lower Bus Bar Cable Kit
  • 7052452
  • Lower Power Block
  • 7056324
  • Positive Bus Bar Cable (x4)
  • 7056341
  • Negative Bus Bar Cable (x4)
  • 7061320
  • Upper Power Block
n/a 7074836  A254 7100W 3-Phase AC Input Power Supply
n/a 7076614  60A 3-Phase AC Input EMI Filter Assembly
n/a 7305956  A254 7100W 3-Phase AC Input Power Supply
n/a 7321272  A254 7100W 3-Phase AC Input Power Supply
n/a 7074835   A254 7100W 3-Phase AC Input Power Supply
SCSI
OPTION # PART # DESCRIPTION
7105387 8-Port 6Gbps SAS-2 PCI Express HBA
7047853  8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
7107092 7069200  800GB PCI Express Flash Accelerator F80 SAS HBA
7104482  7070787  Flash Accelerator F40 400GB Solid State Memory
SGX-SAS6-EXT-Z  7047853  8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a 7026993  Flash Accelerator F40 400GB Solid State Memory
SYSTEM BOARD
OPTION # PART # DESCRIPTION
7104604 7066443  M5-32 Dual 6-Core 3.6GHz CPU/Memory Unit (CMU) Assembly
  • 7047493
  • Memory Board
  • 7047568
  • CPU Board
7106667 7070507  M6-32 Dual 12-Core 3.6GHz CPU/Memory Unit (CMU)
  • 7057504
  • Memory Board Assembly
    • 7047493
    • Memory Board
  • 7070306
  • M6-32 CPU Board Assembly
    • 7070301
    • M6-32 CPU Board
n/a 7062131  CPU/Memory Unit (CMU) Filler Panel
SYSTEM SERVICE PROCESSOR
OPTION # PART # DESCRIPTION
n/a 7053274  Service Processor Assembly (SP)
  • 7066333
  • Service Processor
n/a 7074242  Service Processor Assembly (SP)
  • 7066333
  • Service Processor
  • 7073698
  • Service Processor Module
    • 150-2850
    • 3V Lithium Battery BR1632 / CR1632
n/a 7075727  Service Processor Proxy Assembly (SPP)
  • 7066333
  • Service Processor
  • 7075180
  • Service Processor Proxy Board
    • 150-2850
    • 3V Lithium Battery BR1632 / CR1632

SPARC-M6-32 Component List

Backplane/Centerplane
Option # Part # Description
n/a 7060907 1  Midplane Assembly
  • 7047623
  • Midplane
n/a 7082149  Midplane Assembly
  • 7047623
  • Midplane
1 The FRU includes Torque Wrench 7066858, T20 Torx Bit 7066859, 14" Extension 7066860, and 13x17mm Wrench 7070900.
Batteries
Option # Part # Description
n/a 150-2850  3V Lithium Battery BR1632 / CR1632
Cables
Option # Part # Description
X2121A-1M-N 530-4444  10Gbps QSFP to QSFP Cable, 1m
X2121A-2M 530-4567  10Gbps QSFP to QSFP Cable, 2m
X2121A-3M-N 530-4445  10Gbps QSFP to QSFP Cable, 3m
X2121A-5M-N 530-4446  10Gbps QSFP to QSFP Cable, 5m
X2130A-1M-N 530-4441  10Gbps SFP+ TwinX Cable, 1m
X2130A-3M-N 530-4442  10Gbps SFP+ TwinX Cable, 3m
X2130A-5M-N 530-4443  10Gbps SFP+ TwinX Cable, 5m
n/a 530-4599  Rear System Cable
n/a 7015285  Front System Link Cable
n/a 7015287  PDB to SCMP Link Cable, 858mm
n/a 7052031 4  I/O Power Cable
n/a 7056124  AC Power Cord, North America, 60A/250V, 3-Phase, 460P9W
n/a 7056129 5  AC Power Cord, Europe, 32A/415V, 3-Phase, 532P6W
n/a 7058395  PDB to Scalability Fan Cable
n/a 7060290  Scalability Chassis Negative DC Cable
n/a 7060291  Scalability Chassis Positive DC Cable
n/a 7060726  I/O Assembly Cable
n/a 7070228  Fan Power Cable
n/a 7088912  I/O Assembly Cable
n/a 7089312  I/O Assembly Cable
n/a 7089705  PDB to SCMP Link Cable, 883mm
Chassis
Option # Part # Description
n/a 7018760  Left EMI Plate
n/a 7023473  Right EMI Plate
n/a 7055985  Rear System Indicator Assembly
n/a 7070458  Rear Side Panel
n/a 7070459  Front Side Panel
n/a 7071157 3-inch Swivel Caster, 1200lb Load Rating
n/a 7073412  Scalability Cardcage Assembly
n/a 7077801  Front System Indicator Assembly
  • 530-4608
  • Keyswitch Assembly
n/a 7080855  Front/Rear Door
Communication
Option # Part # Description
7104074 7092757  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
X4242A 375-3696  Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
7092767  Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
n/a 7046442  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
Disk Backplane
Option # Part # Description
n/a 7058660 7  Disk Drive Cage Assembly, 1st Gen
  • 7047731
  • 4-Slot Disk Backplane
n/a 7074234 8  Disk Drive Cage Assembly, 2nd Gen
  • 7073701
  • 4-Slot Disk Backplane
Disks
Option # Part # Description
7105214 7064135  600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
  • 7066795
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7107550 7077233  400GB Solid State SATA Drive Assembly
  • 7076379
  • 400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400]
  • 541-2123
  • Marlin 2.5" Bracket
7101469  7017184  300GB Solid State SATA Drive Assembly
  • 7017181
  • Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk)
  • 541-2123
  • Marlin 2.5" Bracket
Ethernet
Option # Part # Description
7100477 7070195  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7100481 7070202  Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
7100488 7070006  Dual 10-Gigabit Base-T PCI Express Gen2
X1109A-Z 7051223  Dual 10-Gigabit PCI Express Ethernet SFP+ LP
X2124A-N 7326504  10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
X2129A-N 530-4449  10Gb/Sec Short Wave SFP+ Transceiver
X5562A-Z 135-1205  10Gb/Sec Long Wave SFP+ Transceiver
7105381  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7105382  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
SG-XPCIEFCOE2-Q-SR  7053422  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
SG-XPCIEFCOE2-Q-TA  7053423  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a 135-1204  10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a 375-3681  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
Fan
Option # Part # Description
n/a 7061183  Upper Fan Duct Assembly
n/a 7061184  Lower Fan Duct Assembly
n/a 7065126  Fan Module (FM)
  • 7047468
  • Fan Control Board
  • 7065127
  • 80×80×76mm Fan Assembly
n/a 7083422  Fan Module (FM)
  • 7047468
  • Fan Control Board
  • 7065127
  • 80×80×76mm Fan Assembly
Fibre Channel
Option # Part # Description
7101674 7023303  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
7101676 7023325  Pair of 16Gbps Short Wave SFP+
  • 7023324
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101678 7023315  Pair of 10Gbps Short Wave SFP+
  • 7023316
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101684 7023036  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
7101686 7023059  Pair of 16Gbps Short Wave SFP+
  • 7023053
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
7101688  7023057  Pair of 10Gbps Short Wave SFP+
  • 7023046
  • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
7106958  7076907  8Gigabit/Sec PCI Express Dual FC Host Adapter, Qlogic
SG-XPCIE2FC-EM8-N  7053434  8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
I/O
Option # Part # Description
7106670 7074101 12  I/O Express Module SAS Base Assembly (EMS) / Base I/O Board, 2nd Gen
  • 7026282
  • I/O Enclosure
  • 7074099
  • I/O Express Module SAS Assembly (EMS)
    • 7073704
    • I/O Express Module SAS Board (EMS)
n/a 7054192  I/O Unit (IOU)
  • 7047637
  • I/O Unit Backplane Assembly
  • 7057065
  • I/O Unit Chassis Assembly
n/a 7057513  I/O Switch Board Assembly (IOB)
  • 7047726
  • I/O Switch Board
  • 7057029
  • I/O Switch Chassis
n/a 7058671 11  I/O Express Module SAS Base Assembly (EMS) / Base I/O Board, 1st Gen
  • 7026282
  • I/O Enclosure
  • 7058670
  • I/O Express Module SAS Assembly (EMS)
    • 7047471
    • I/O Express Module SAS Board (EMS)
n/a 7069813  PCI Express Carrier Assembly
  • 7068608
  • PCI Express Carrier Board
  • 7069815
  • PCI Express Carrier Enclosure
    • 351-0009
    • PCI Express Filler Panel, Low Profile
n/a 7086750  PCI Express Carrier Assembly
  • 7068608
  • PCI Express Carrier Board
  • 7086745
  • PCI Express Carrier Enclosure
    • 351-0009
    • PCI Express Filler Panel, Low Profile
n/a 7089095  PCI Express Carrier Enclosure
  • 351-0009
  • PCI Express Filler Panel, Low Profile
  • 7068608
  • PCI Express Carrier Board
  • 7084357
  • PCI Express Carrier Board
  • 7091851
  • PCI Express Carrier Enclosure
n/a 7314411  PCI Express Carrier Assembly
  • 7068608
  • PCI Express Carrier Board
  • 7084357
  • PCI Express Carrier Board
  • 7090454
  • PCI Express Carrier Enclosure
  • 7091851
  • PCI Express Carrier Enclosure
  • 7314409
  • PCI Express Filler Panel, Low Profile
  • 7314410
  • PCI Express Carrier Enclosure
Memory
Option # Part # Description
7104493 7049083  16GB Registered DIMM
7104495 7049085  32GB Registered DIMM
n/a 330-4839 Memory Slot Filler
Miscellaneous
Option # Part # Description
7106668 7058279  Clock Board Assembly (CLK)
  • 7053370
  • Clock Board Enclosure
  • 7057830
  • Clock Board
n/a 7025883  I/O Cable Management Assembly (CMA)
n/a 7053631  Scalability Switch Board Assembly (SSB)
  • 7053445
  • Switch Board Enclosure
  • 7056760
  • Scalability Switch Board (SSB)
n/a 7060909  Scalability Assembly
  • 7047564
  • System ID Board
  • 7066445
  • Scalability Assembly
Power
Option # Part # Description
n/a 7055066  Power System Distribution Board Assembly (PSDB)
  • 7047630
  • Power System Distribution Board (PSDB)
  • 7055065
  • Power System Distribution Board Enclosure
n/a 7061080 14  Bus Bar Crown Clip Installation Kit [SKU]
  • 7010239
  • Bus Bar Crown Clip, Tyco 1926671-1 (x6)
n/a 7061185  Power Supply Cage Assembly
n/a 7061187  Lower Bus Bar Cable Kit
  • 7052452
  • Lower Power Block
  • 7056324
  • Positive Bus Bar Cable (x4)
  • 7056341
  • Negative Bus Bar Cable (x4)
  • 7061320
  • Upper Power Block
n/a 7074836  A254 7100W 3-Phase AC Input Power Supply
n/a 7076614  60A 3-Phase AC Input EMI Filter Assembly
n/a 7305956  A254 7100W 3-Phase AC Input Power Supply
n/a 7321272  A254 7100W 3-Phase AC Input Power Supply
n/a 7074835   A254 7100W 3-Phase AC Input Power Supply
SCSI
Option # Part # Description
7105387 8-Port 6Gbps SAS-2 PCI Express HBA
7047853  8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
7107092 7069200  800GB PCI Express Flash Accelerator F80 SAS HBA
7104482  7070787  Flash Accelerator F40 400GB Solid State Memory
SGX-SAS6-EXT-Z  7047853  8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a 7026993  Flash Accelerator F40 400GB Solid State Memory
System Board
Option # Part # Description
7104604 7066443  M5-32 Dual 6-Core 3.6GHz CPU/Memory Unit (CMU) Assembly
  • 7047493
  • Memory Board
  • 7047568
  • CPU Board
7106667 7070507  M6-32 Dual 12-Core 3.6GHz CPU/Memory Unit (CMU)
  • 7057504
  • Memory Board Assembly
    • 7047493
    • Memory Board
  • 7070306
  • M6-32 CPU Board Assembly
    • 7070301
    • M6-32 CPU Board
n/a 7062131  CPU/Memory Unit (CMU) Filler Panel
System Service Processor
Option # Part # Description
n/a 7053274  Service Processor Assembly (SP)
  • 7066333
  • Service Processor
n/a 7074242  Service Processor Assembly (SP)
  • 7066333
  • Service Processor
  • 7073698
  • Service Processor Module
    • 150-2850
    • 3V Lithium Battery BR1632 / CR1632
n/a 7075727  Service Processor Proxy Assembly (SPP)
  • 7066333
  • Service Processor
  • 7075180
  • Service Processor Proxy Board
    • 150-2850
    • 3V Lithium Battery BR1632 / CR1632

Adirondack Networks Hardware Warranty:

Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.

Extended Hardware Maintenance Warranty:

The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.

Warranty Repair:

If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.

GET AN MAINTENANCE QUOTE

Sell us your IT Equipment

We Buy Used Computer & Networking Hardware

If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.

GET A BUY-OUT QUOTE

About us

Adirondack Networks is a leading provider of new, refurbished and used Oracle SPARC M6-32 Server hardware. We specialize in Oracle SPARC Servers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the Oracle SPARC M6-32 Server to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find SPARC-M6-32 hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.

Contact us if you have questions or need more information on Part#: SPARC-M6-32

Adirondack Networks also offers extended warranties on the Oracle SPARC M6-32 Server and other Oracle SPARC Servers. Contact us for options and pricing.

Contact Us

Adirondack Networks Inc.

55 Oriskany Blvd. Yorkville,
New York 13495

Sales & Support

1-888-228-1188

1-315-732-1420

Message Us

We can save you 50% or more
on your current maintenance contract costs!

For a Limited Time
 GET 3 MONTHS FREE!

REQUEST QUOTE or CALLBACK
Adirondack Networks - Oracle SPARC M6-32 Server
