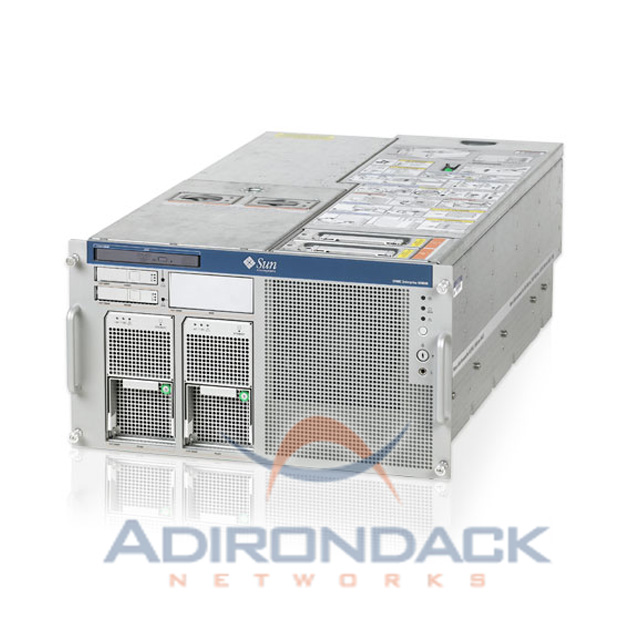

Sun SPARC Enterprise M4000 Server
Sun SPARC Enterprise M4000 Server, RoHS:YL - Midrange 6RU server with up to four processors.
Manufacturer Oracle Sun
Part Number(s):
Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.
Part Number(s):
Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.
About the Sun SPARC Enterprise M4000 Server
| Processor | |
| Number | Up to 4 CPUs, 2 CPUs per System Board, up to 2 System Boards SPARC64 VI: Up to 8 Cores SPARC64 VII: Up to 16 Cores SPARC64 VII+: Up to 16 Cores |
| Architecture | SPARC64 VI: 2.15GHz Dual Core processors, SPARC V9, ECC Protected SPARC64 VII: 2.4GHz Quad Core processors, SPARC V9, ECC Protected SPARC64 VII: 2.53GHz Quad Core processors, SPARC V9, ECC Protected SPARC64 VII+: 2.66GHz Quad Core processors, SPARC V9, ECC Protected |
| Cache memory | SPARC64 VI: 5MB Shared Level 2 on Chip Cache per Processor, 128KB I-Cache and 128KB D-Cache Level 1 per Core SPARC64 VII: 5MB Shared Level 2 on Chip Cache per Processor, 64KB I-Cache and 64KB D-Cache Level 1 per Core SPARC64 VII+: 11MB Shared Level 2 on Chip Cache per Processor, 64KB I-Cache and 64KB D-Cache Level 1 per Core |
| Main Memory | |
| Capacities |
16GB (using 1GB DDR2 DIMMS) to 256GB (using 8GB DDR2 DIMMs), 8 slots per board, 4 memory boards per system. |
| Standard Interfaces | |
| Ethernet | 2 × Gigabit Ethernet ports, also 2 × 10/100 ethernet ports for accessing CLI and browser based interface on Extended System Control Facility (XSCF) |
| PCI-X / PCI-Express | 1 × PCI-X Slot, 4 × PCI-E Slots per I/O tray |
| Serial | 1 RJ-45 - on XSCF to access CLI |
| USB | One port on XSCF that field engineer can use to download hardware information |
| Internal Mass Storage | |
| Disks | Up to 2 internal 73GB, 146GB or 300GB SAS Disk Drives |
| DVD-ROM | 1 CD-RW / DVD-RW |
| Tape | DAT72 Tape Drive (optional) |
| Power Supplies | |
| Type | 2 × 100-240 VAC, 2000W, 1-phase (50-60Hz), 12 amp per power cord, 1-2 power cords (1 + 1 redundant, second power supply is redundant at 200 VAC) |
| Output | 2350 Watts (2 power cords) |
| Environment | |
| AC Power | 100-240VAC |
| Input power | 100 127 VAC 200 240 VAC |
| Power Draw | 2350 Watts (2 power cords) |
| Volt Ampere | 2058 VA |
| Maximum Current | 24.0A at 100 127 VAC, 12A / cord 12.0A at 200 240 VAC, 12A / cord |
| Heat output | 6879 BTU/hr (7258 kJ/hr) - 2 CPU modules, 128GB memory |
| Temperature | Operating: 5° C to 35° C (41° F to 95° F) * Nonoperating: -20° C to 60° C (-4° F to 140° F) * Optimal: 21° C to 23° C (70° F to 74° F) |
| Humidity | Operating: 20% to 80% relative humidity, noncondensing Nonoperating: Up to 93% relative humidity, noncondensing Optimal: 45% to 50% relative humidity, noncondensing |
| Altitude | Operating: Up to 3000m (10000 ft) Nonoperating: 12000m (39,370 ft) |
| * - derated 2° C for every 1km up to 3km | |
| Regulations Meets or exceeds the following requirements: |
|
| Safety | CSA/UL-60950, EN60950, IEC950 CB Scheme with all national deviations |
| Ergonomics | GS |
| RFI/EMI | EN55022/CISPR22 Class-A, FCC CFR47 Part 15 Class A, EN61000-3-2, EN61000-3-3 |
| Immunity | EN55024, EN61000-4-2, -4-3, -4-5, -4-6, -4-8, -4-11 |
| Regulatory Markings | CE, FCC, ICES, C-tick, VCCI, GOST-R, BSMI, MIC, CSA/UL |
| Dimensions and Weights | |
| Height | 26.3cm (10.34 in) |
| Width | 44.4 cm (17.48 in) |
| Depth | 81 cm (31.9 in) |
| Weight | 84kg (185 lbs) |
| Power Cord | 1 - 2, 4m (13 ft) * Americas, Japan, & Taiwan: NEMA L5-15 125V 15A, NEMA L6-20 250V 20A All other locations except Japan & Taiwan: IEC 60309 16A 250V, 3PIN with IEC60309 C20 |
| * - 2 power cords required for redundancy | |
| Clearance and Service Access | |
| Front | 91.4cm (36 in) |
| Rear | 91.4cm (36 in) |
| Right | none - front to back cooling |
| Left | none - front to back cooling |
| Top | 91.4cm (36 in) |
| Airflow | Front to back - 8.5 cubic meters per minute (300 cfm) in normal operating conditions |
| Rack Mounting | |
| Sun Rack 1000-38, Sun Rack 1000-42, Sun Rack 900 | |
