PRIMERGY RX4770 M3 Rack Server

The FUJITSU Server PRIMERGY RX4770 M3 defines four-socket rack server technology without compromising performance, scalability, and expandability.
Manufacturer Fujitsu
Part Number(s): RX4770-M3

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or refurbished PRIMERGY RX4770 M3 Rack Servers, upgrades or parts, please contact us.

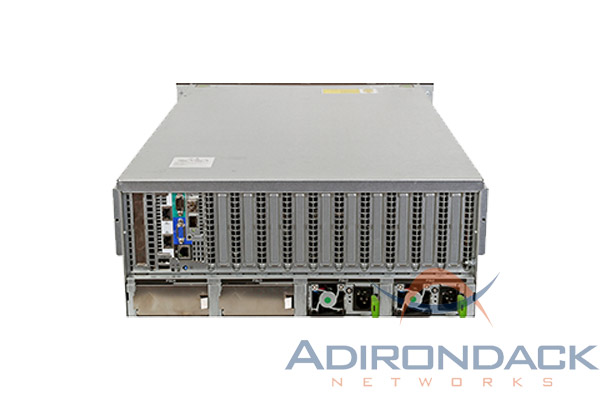

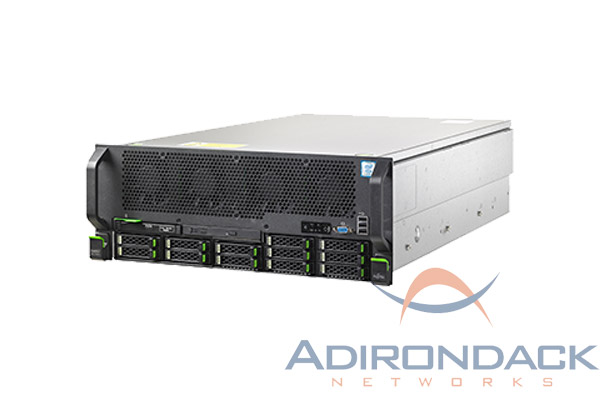

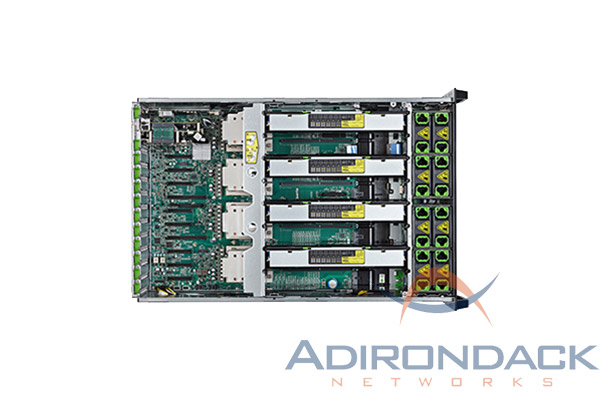

RX4770-M3-600px-1 RX4770-M3-600px-2

About the PRIMERGY RX4770 M3 Rack Server

Chipset

  • Intel C114 Scalable Memory Buffer (Advanced)
  • Intel C602 J

Mainboard Type

  • D3749

Product Type

  • Quad Socket Rack Server

Processor

  • Intel Xeon processor E7-8800 v4 product family

Memory

  • 16 GB - 6 TB, DIMM (DDR4)

Memory Protection

  • Advanced ECC
  • Memory Scrubbing
  • SDDC
  • Rank sparing memory support
  • Memory Mirroring support
  • DDDC (Double Device Data Correction)

Drives (Optional)

  • DVD Super Multi, slimline, SATA I
  • Blu-ray Disc™ Triple Writer, slimline, SATA I

PCI-Express 3.0 x8

  • 9 x Full height 1/2 length

PCI-Express 3.0 x16

  • 2 x Full height 3/4 length

Slot Notes

  • One of the nine slots are exclusive for internal RAID Controller as connection to internal HDD/SSD slots

Accessible Drive Bays

  • 1 x 5.25/0.5-inch for DVD-RW/Blu-ray

Storage Drive Bays

  • 12 x 2.5-inch hot-plug
  • 8 x SAS/SATA + 4 x PCIe

RAID Controller

  • Fujitsu PRAID CP400i, RAID Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
  • RAID level: 0, 1, 1E, 10, 5, 50, No FBU support
  • Fujitsu PRAID EP400i, RAID 5/6 Ctrl., SAS/SATA/PCIe-NVMe 12 Gbit/s, 16 ports int.
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU based on LSI SAS3108
  • Fujitsu PRAID EP420i, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108
  • Fujitsu PRAID EP420i for SafeStore, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108
  • Fujitsu PRAID EP440i FH, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 4 GB, Optional FBU based on LSI SAS3108
  • Fujitsu PRAID EP440i FH TFM SafeStore, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 4 GB, Optional FBU based on LSI SAS3108

I/O Controller Onboard

  • 2 x 100/1000 Mbit/s / 10 Gbit/s Ethernet (RJ45)
  • Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller), IPMI 2.0 compatible

Trusted Platform Module (TPM)

  • Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)

Power Supply Configuration

  • Up to 4 hot-plug power supplies. Base unit equipped with 2 power supplies, 3rd and 4th PSU as option, no Mix

Active Power

  • 1,990 W

Rack (W x D x H)

  • 482.6 mm (Bezel) / 445mm (Body) x 765 x 176 mm

Mounting Depth Rack

  • 728 mm

Weight

  • Up to 46 kg
