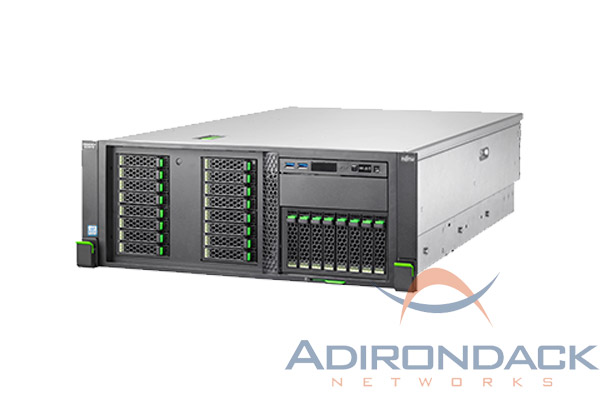

PRIMERGY RX2560 M2 Rack Server

The PRIMERGY RX2560 M2 server combines the performance, high throughput memory design and robust I/O of the Intel Xeon processors E5-2600 v4 family with a hugely expandable chassis.
Manufacturer Fujitsu
Part Number(s): RX2560-M2

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or refurbished PRIMERGY RX2560 M2 Rack Servers, upgrades or parts, please contact us.
RX2560-M2-600px-1 RX2560-M2-600px-2

About the PRIMERGY RX2560 M2 Rack Server


  • Intel C612

Mainboard Type

  • D3289-B

Product Type

  • Dual Socket Rack Server


  • Intel Xeon processor E5-2600 v4 product family


  • 8 GB - 1536 GB, DIMM (DDR4)

Memory Protection

  • Advanced ECC
  • Memory Scrubbing
  • SDDC
  • Rank sparing memory support
  • Memory Mirroring support

Drives (Optional)

  • DVD-ROM, half height, SATA I
  • DVD Super Multi, half height, SATA I
  • LTO5HH Ultrium, 140 MB/s, 1,500 GB, SAS 6Gb/s
  • DVD supermulti, ultraslim, SATA I
  • Blu-ray Disc™ Triple Writer, ultraslim, SATA I
  • RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
  • LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
  • LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s

PCI-Express 3.0 x4

  • 4 x Full height optional; Slot 5+6 (CPU 1, riser card); Slot 11+12 (CPU 2, riser card), 252mm length

PCI-Express 3.0 x8

  • 5 x Full height ; Slot 1 (CPU1, modular RAID, 167mm), Slot 2 (CPU1, 167mm), opt. Slot 4 (CPU1, opt. riser card, 252mm); opt. Slot 8 (CPU2, 167mm), opt. Slot 10 (CPU2, opt. riser card, 252mm)

PCI-Express 3.0 x16

  • 3 x Full height ; Slot 3 (CPU1), Slot 8+9 (CPU2), 167mm lenght; ! please be aware, optional riser cards occupy Slot 3 / 9

Slot Notes

  • Slot 1: PCIe Gen3 x8 slot is dedicated for the modular RAID Controller
  • Up to 5 PCIe Gen3 slots are supported with the first processor, up to 10 PCIe Gen3 slots are supported with two processors.
  • Onboard slots (Slot1, 2, 3 & 7, 8, 9) support card lenght of up to 167mm; Slots on the optional riser cards (4, 5, 6; 10, 11, 12) support card lenght of up to 252mm

Optional Accessible Drives

  • 3 x 5.25/1.6-inch

Optional Accessible Drives

  • up to 3x 5.25/1.6-inch bay for accessible devices (depending on the amount of storage drive bays)
  • All possible options described in relevant system configurator

Storage Drive Bays

  • 3.5-inch SAS/SATA: Max. 12x hot-plug HDD + opt. 2x 2.5-inch non hot-plug HDD/SSD
  • 2.5-inch SAS/SATA: Max. 32x hot-plug HDD/SSD
  • 2.5-inch PCIe: Max. 8x non hot-plug SSD

RAID Controller

  • Fujitsu PRAID CP400i, RAID Ctrl., SAS/SATA 12 Gbit/s, 8 ports int
  • RAID level: 0, 1, 1E, 10, 5, 50, No FBU support
  • Fujitsu PRAID EP400i, RAID 5/6 Ctrl., SAS/SATA/PCIe-NVMe 12 Gbit/s, 16 ports int
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU based on LSI SAS3108
  • Fujitsu PRAID EP420i, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108
  • Fujitsu PRAID EP420i for SafeStore, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108
  • Fujitsu PRAID EP440i FH, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 4 GB, Optional FBU based on LSI SAS3108
  • Fujitsu PRAID EP440i FH TFM SafeStore, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int
  • RAID level: 0, 1, 10, 5, 50, 6, 60, 4 GB, Optional FBU based on LSI SAS3108

I/O Controller Onboard

  • Intel C612, 1 x SATA connector for optical drive (ODD), 1x SATA connector for SATA-DOM
  • DynamicLoM based on Emulex XE100 series
  • Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller), IPMI 2.0 compatible

Trusted Platform Module (TPM)

  • Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)

Power Supply Configuration

  • 1x hot-plug power supply or 2 x hot-plug power supply for redundancy

Active Power

  • 748 W

Rack (W x D x H)

  • 482.6 mm (Bezel) / 448 mm (Body) x 736 x 177 mm

Mounting Depth Rack

  • 721 mm


  • Up to 35.5 kg

Adirondack Networks Hardware Warranty:

Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.

Extended Hardware Maintenance Warranty:

The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.

Warranty Repair:

If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.


Sell us your IT Equipment

We Buy Used Computer & Networking Hardware

If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.


About us

Adirondack Networks is a leading provider of new, refurbished and used PRIMERGY RX2560 M2 Rack Server hardware. We specialize in PRIMERGY Rack Servers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the PRIMERGY RX2560 M2 Rack Server to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find RX2560-M2 hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.

Contact us if you have questions or need more information on Part#: RX2560-M2

Adirondack Networks also offers extended warranties on the PRIMERGY RX2560 M2 Rack Server and other PRIMERGY Rack Servers. Contact us for options and pricing.
