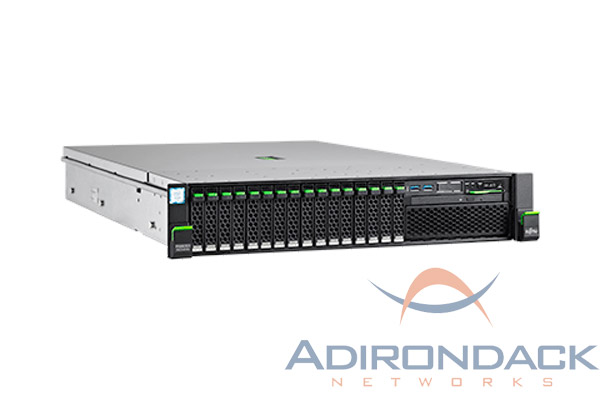

PRIMERGY RX2540 M4 Rack Server

The FUJITSU Server PRIMERGY RX2540 M4 is the new 2U dual socket rack server for high usability, scalability and cost-efficiency. Its Intel Xeon Processor Scalable Family CPUs in conjunction with DDR4 memory technology with up to 3TB increases performance to meet the requirements for data center processing, enterprise applications as well as collaboration.
Manufacturer Fujitsu
Part Number(s): RX2540-M4

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or refurbished PRIMERGY RX2540 M4 Rack Servers, upgrades or parts, please contact us.

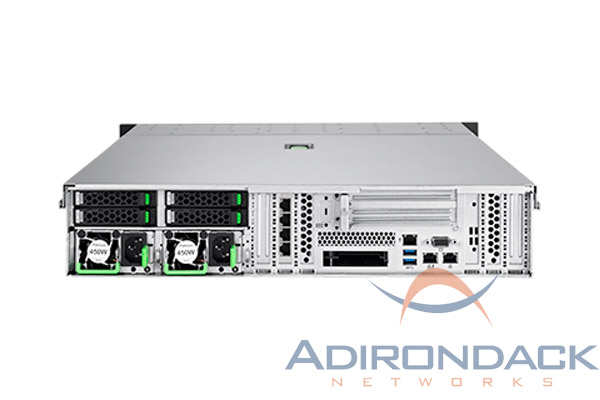

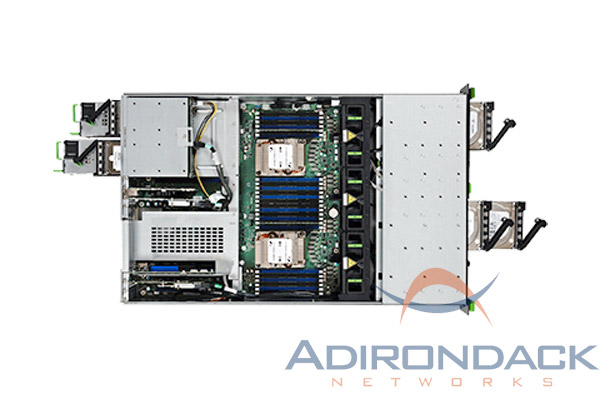

RX2540-M4-600px-1 RX2540-M4-600px-2

About the PRIMERGY RX2540 M4 Rack Server


  • Intel C624

Mainboard Type

  • D3384

Product Type

  • Dual Socket Rack Server


  • Intel Xeon Processor Scalable Family


  • 8 GB - 3072 GB, DIMM (DDR4)

Memory Protection

  • Advanced ECC
  • Memory Scrubbing
  • SDDC
  • Rank sparing memory support
  • Memory Mirroring support

Drives (Optional)

  • DVD supermulti
  • Ultraslim
  • SATA I
  • LTO5HH Ultrium, 140 MB/s, 1,500 GB, SAS 6Gb/s
  • RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
  • LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
  • LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s

PCI-Express 3.0 x8

  • 3 x Low profile (2nd processor required for slot 4)

PCI-Express 3.0 x16

  • 3 x Low profile (2nd processor required for slot 5 and 6)

Slot Notes

  • One PCIe Gen3 x8 slot may be occupied with a Modular RAID controller if configured
  • 3 PCIe slots are supported with the first processor. 6 PCIe slots are supported with two processors
  • PCIe riser card options can expand number of slots by two (max. 8 in total) and support max. 4 full height slots
  • Possible slot length described in relevant system configurator

Accessible Drive Bays

  • 1 x 5.25/0.4-inch for CD-RW/DVD

Optional Accessible Drives

  • All possible options described in relevant system configurator.

Storage Drive Bays

  • 3.5-inch or 2.5-inch hot-plug SAS/SATA
  • 4 x 3.5-inch hot-plug SAS/SATA
  • 12 x 3.5-inch hot-plug SAS/SATA
  • 16 x 2.5-inch hot-plug SAS/SATA
  • 8 x 2.5-inch hot-plug SAS/SATA
  • 24 x 2.5-inch hot-plug SAS/SATA

I/O Controller Onboard

  • Intel C624, 1 x SATA channel for ODD
  • All hardware storage controller options are described under Components
  • 2 x 1Gbit/s onboard, Optional DynamicLoM OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+
  • Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible

Trusted Platform Module (TPM)

  • Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)

Power Supply Configuration

  • 1x non hot-plug power supply or 2x hot-plug power supply for redundancy

Active Power

  • 715 W

Rack (W x D x H)

  • 482.4 mm (Bezel) / 445 mm (Body) x 770 x 86.6 mm

Mounting Depth Rack

  • 740 mm


  • Up to 25 kg
