PRIMERGY RX2520 M4 Rack Server

The Fujitsu PRIMERGY RX2520 M4 is an efficient and scalable platform for essential business applications. As a dual socket rack server it features the latest Intel Xeon Scalable Family processors with up to 384 GB RAM. The PRIMERGY RX2520 delivers an especially well balanced price / performance ratio making it ideal for baseline datacenter workloads i.e. for collaboration platforms or storage-hungry applications.
Manufacturer Fujitsu
Part Number(s): RX2520-M4

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or refurbished PRIMERGY RX2520 M4 Rack Servers, upgrades or parts, please contact us.

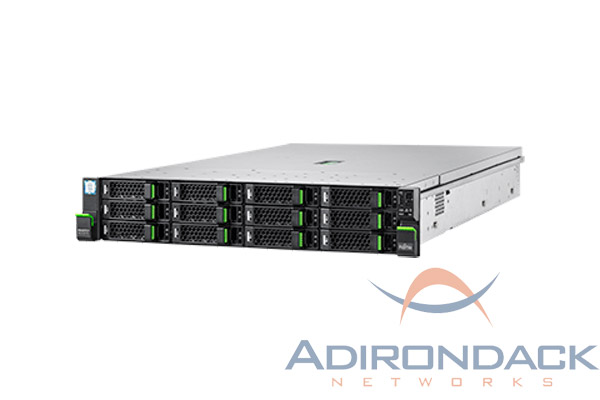

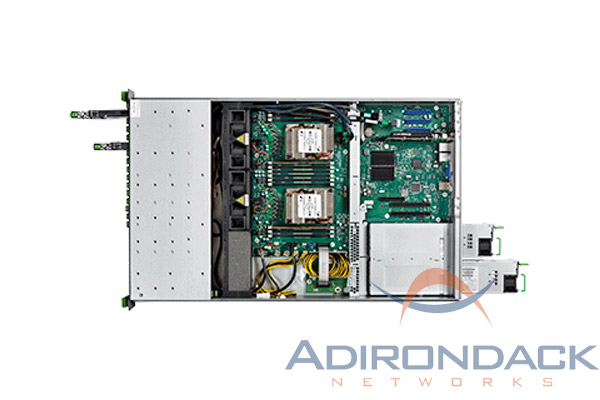

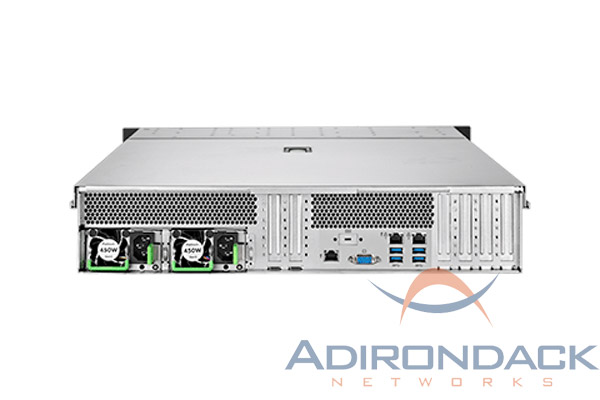

RX2520-M4-600px-1 RX2520-M4-600px-2

About the PRIMERGY RX2520 M4 Rack Server

Chipset

  • Intel C624

Mainboard Type

  • D3386

Product Type

  • Dual Socket Rack Server

Processor

  • Intel Xeon Processor Scalable Family

Memory

  • 8 GB - 384 GB, DIMM (DDR4)

Memory Protection

  • Advanced ECC
  • Memory Scrubbing
  • SDDC

Drives (Optional)

  • DVD supermulti
  • Ultraslim
  • SATA I
  • LTO5HH Ultrium, 140 MB/s, 1,500 GB, SAS 6Gb/s
  • RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
  • LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
  • LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s

PCI-Express 3.0 x8

  • 3 x Low profile

Slot Notes

  • The number of PCIe slots depends on the number of CPUs:
    • 3x PCIe x8 Gen 3 with CPU1
    • 1x PCIe x16 Gen 3 with CPU1
    • 2x PCIe x16 Gen 3 with CPU2

Accessible Drive Bays

  • 1 x 5.25/0.5-inch for ODD
  • 1 x 5.25/1.6-inch for backup devices
  • 1 x 5.25/1.6-inch for 1 x backup drive or 1 x ODD

Optional Accessible Drives

  • 1x optical drive, 1x backup drive
  • 1x optical disk drive
  • All possible options described in relevant system configurator

Storage Drive Bays

  • 2.5-inch base units (max. 24 x 2.5) or 3.5-inch base units (max. 12 x 3.5)
  • 8 x 2.5-inch hot-plug SAS/SATA
  • 16 x 2.5-inch hot-plug SAS/SATA
  • 24 x 2.5-inch hot-plug SAS/SATA
  • 4 x 3.5-inch hot-plug SAS/SATA
  • 12 x 3.5-inch hot-plug SAS/SATA
  • Optionally expandable to 16x/24x 2.5" HDD/SSD with SAS expander; or with 4x PCIe-SSD
  • SAS expander not required with PRAID EP5xxi
  • Not expandable, incl. SAS expander
  • optionally expandable to 8x 3.5“ with SAS expander

I/O Controller Onboard

  • Intel C624, 1 x SATA channel for ODD
  • All hardware storage controller options are described under Components
  • 2 x 1Gbit/s Ethernet Controller (10/100/1000 Mbit/s)
  • IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)

Trusted Platform Module (TPM)

  • Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)

Power Supply Configuration

  • 1x non hot-plug power supply or 2x hot-plug power supply for redundancy

Active Power

  • 643 W

Rack (W x D x H)

  • 482.4 mm (Bezel) / 445mm (Body) x 770 x 86.6 mm

Mounting Depth Rack

  • 740 mm

Weight

  • Up to 25 kg

Adirondack Networks Hardware Warranty:

Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.

Extended Hardware Maintenance Warranty:

The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.

Warranty Repair:

If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.

GET AN MAINTENANCE QUOTE

Sell us your IT Equipment

We Buy Used Computer & Networking Hardware

If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.

GET A BUY-OUT QUOTE

About us

Adirondack Networks is a leading provider of new, refurbished and used PRIMERGY RX2520 M4 Rack Server hardware. We specialize in PRIMERGY Rack Servers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the PRIMERGY RX2520 M4 Rack Server to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find RX2520-M4 hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.

Contact us if you have questions or need more information on Part#: RX2520-M4

Adirondack Networks also offers extended warranties on the PRIMERGY RX2520 M4 Rack Server and other PRIMERGY Rack Servers. Contact us for options and pricing.
