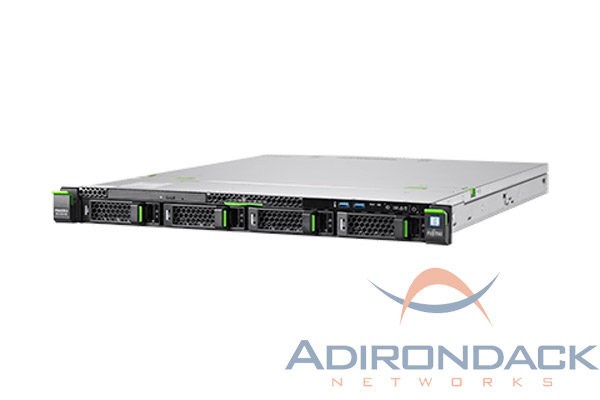

PRIMERGY RX1330 M3 Rack Server

The FUJITSU Server PRIMERGY RX1330 M3 is a mono-socket rack server designed to provide a solution for small budgets, yet enabling a rich set of optional expansions to best meet individual demands.
Manufacturer Fujitsu
Part Number(s): RX1330-M3

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or refurbished PRIMERGY RX1330 M3 Rack Servers, upgrades or parts, please contact us.

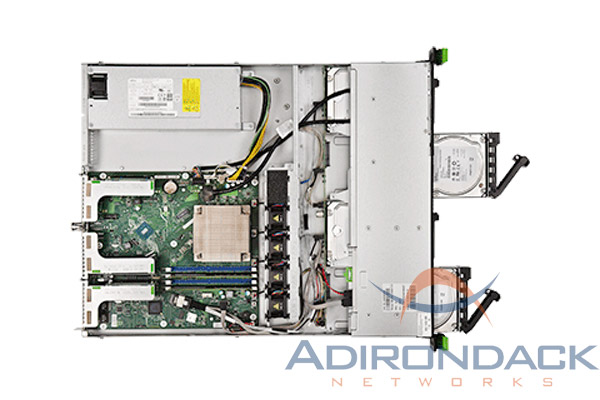

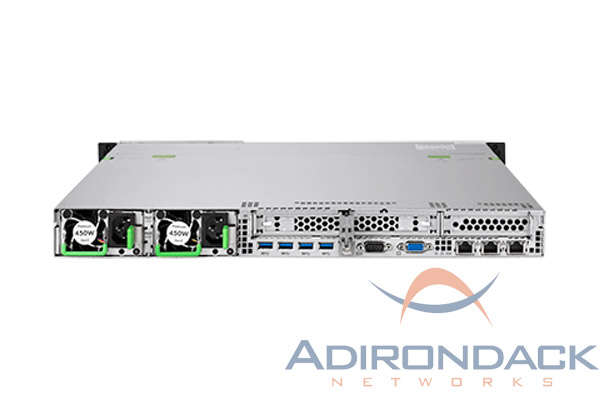

RX1330-M3-600px-1 RX1330-M3-600px-2

About the PRIMERGY RX1330 M3 Rack Server

Chipset

  • Intel C236

Mainboard Type

  • DD3375

Product Type

  • Mono Socket Rack Server

Processor

  • Intel Xeon processor E3-1200 v6 product family
  • Intel Core i3 processor
  • Intel Pentium processor
  • Intel Celeron processor

Memory

  • 4 GB - 64 GB, DIMM (DDR4)

Memory Protection

  • ECC

Drives (Optional)

  • DVD supermulti
  • Ultraslim
  • SATA I

PCI-Express 3.0 x4

  • 1 x Low profile

PCI-Express 3.0 x8

  • 2 x Low profile Length 175mm; PCIe slot
  • 1 = dedicated Modular RAID slot

Slot Notes

  • Optional support of 1x full height PCIe Gen3 x8 card, instead of 1x PCIe Gen2 x4 and 1x PCIe Gen3 x8

Accessible Drive Bays

  • 1 x 5.25/0.4-inch for CD-RW/DVD

Optional Accessible Drives

  • Following limitations applies to 10x 2.5-inch HDD base unit:
    • No CD-RW/DVD
    • 1x USB 2.0 at the front
    • No front VGA

Storage Drive Bays

  • 4/8 x 2.5-inch hot-plug SAS/SATA or 4x 3.5-inch hot-plug SAS/SATA or 10 x 2.5-inch hot-plug SAS/SATA
    • Max. 4x 3.5-inch
    • Max. 8x 2.5-inch
    • Max. 10x 2.5-inch

I/O Controller Onboard

  • Intel C236, 1 port used for accessible drive or SATA DOM
  • 4 port for internal SATA HDDs with RAID 0, 1, 10 for Windows and Linux;
  • 4-port SATA 6Gb with RAID 0, 1, 10
  • 4-port SATA 3GB with RAID 0, 1, 10
  • Integrated RAID 0/1 or RAID 5/6 controller (option), All hardware storage controller options are described under Components
  • 4 port SATA with RAID 0/1/10 for HDDs
  • Intel┬« i210 onboard
  • 2 x 10/100/1000 Mbit/s Ethernet (TCP/IP acceleration)
  • Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller), IPMI 2.0 compatible

Trusted Platform Module (TPM)

  • Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)

Power Supply Configuration

  • 1x standard power supply or1x hot-plug power supply or 2x hot plug power supplies for redundancy depending on model

Active Power

  • 152 W

Rack (W x D x H)

  • 482.6 mm (Bezel) / 435.4 mm (Body) x 572 x 42.8 mm

Weight

  • Up to 13 kg
