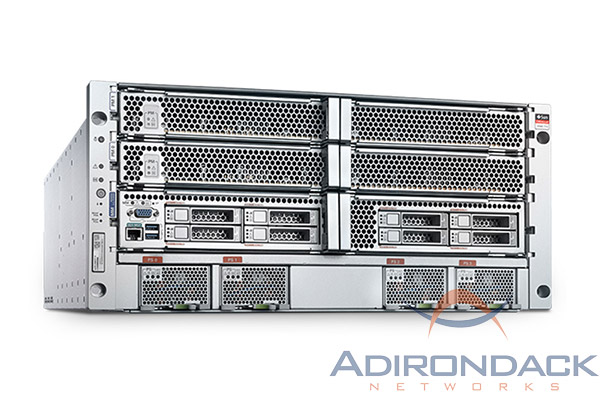

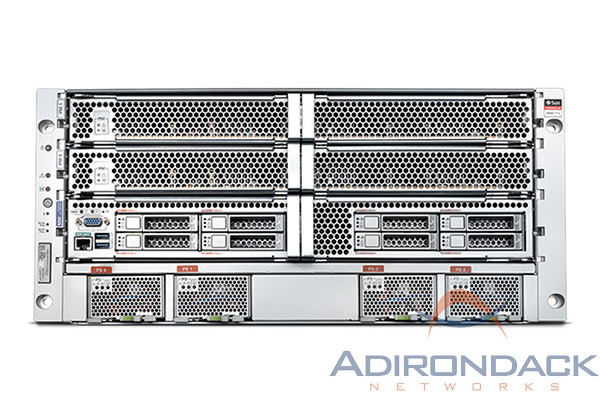

Oracle SPARC T7-4 Server

About the Oracle SPARC T7-4 Server

Oracle’s SPARC T7-4 server is a four-processor system that enables organizations to respond to IT demands with extreme security and performance, at a lower cost compared to alternatives. It is ideal for a wide range of enterprise-class workloads, including database, applications, Java, and middleware, especially in a cloud environment. This system is based on the SPARC M7 processor, the first to use a revolutionary technology from Oracle referred to as Software in Silicon.

Oracle SPARC T7-1 Server Specifications

• Processor
• •Thirty-two core, 4.13 GHz SPARC M7 processor
• •Up to 256 threads per processor (up to 8 threads per core)
• •Eight accelerators per processor, each supporting four concurrent in-memory query operations with decompression
• •Thirty-two on-chip encryption instruction accelerators with direct nonprivileged support for 15 industry-standard cryptographic algorithms: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512 (one per core)
• •Thirty-two floating-point units per processor (one per core)
• •One random number generator (one per processor)
• • Cache Per Processor
  • •Level 1: 16 KB instruction and 16 KB data per core
  • •Level 2: 256 KB L2 I$ per four cores, 256 KB L2 D$ per core pair
  • •Level 3: 64 MB L3$ on chip
  • System Configurations
  • •SPARC T7-4 servers may be configured with either two or four SPARC M7 processors, upgradeable from two to four processors
  • •Sixteen dual inline memory module (DIMM) slots per processor supporting half and fully populated memory configurations using 16, 32, or 64 GB DDR4 DIMMs
    •     ○4 TB maximum memory configuration with a four processor system and 64 GB DIMMs
      •     ○2 TB maximum memory configuration with a two processor system and 64 GB DIMMs
  • Interfaces
  • •Network: four 10 GbE (100 Mbps/1 Gbps/10 Gbps), full duplex only, auto-negotiating
  • •Expansion bus: sixteen low-profile PCIe 3.0 slots, each accessed via a hot-plug carrier (eight x8 and eight x16) slots
  • •Ports: four external USB 3.0 (two front, two rear), one RJ45 serial management port, console 10/100 network port, two VGA ports (one front, one rear)
  • Mass Storage and Media
  • •Up to eight 600 GB or 1,200 GB 2.5 in. SAS drives
  • •Optional internal storage may be installed within the standard drive bays
    •     ○400 GB SSD drives, maximum of eight○
      •     ○1.6 TB NVMe drives, maximum of eight
  • System Architecture
  • •SPARC V9 architecture, ECC protected
  • Power Supplies
  • •Four hot-swappable AC 3,000 W redundant (2 + 2) power supplies
  • •Voltage 200 to 240 VAC, frequency 50/60 Hz
  • •Maximum operating input current at 200 V AC: 22.8 A
  • •Maximum operating input power at 200 V AC: 4,466 W
  • Key Ras Features
  • •Hot-plug disk drives
  • •Redundant, hot-swappable power supplies and fans
  • •Environmental monitoring
  • •Extended ECC, error correction, and parity checking
  • •DIMM sparing enabled with fully populated memory slots, increasing system reliability and uptime
  • •Easy component replacement
  • •Integrated dual disk controllers with RAID 0, 1, and 1E/10
  • •Fault Management Architecture including Predictive Self Healing — both are features of Oracle Solaris
  • Software
  • Operating System
  • Oracle recommends Oracle Solaris 11.3 or later for enhanced performance and functionality, including features enabled by Software in Silicon technology
  • •Control domain: Oracle Solaris 11.3 or later
  • •The following versions are supported within guest domains:
    •     ○Oracle Solaris 11.3 or later
      •     ○Oracle Solaris 10 1/13*
        •     ○Oracle Solaris 10 8/11*
          •     ○Oracle Solaris 10 9/10*
            •     *Plus required patches
  • Virtualization
  • Built-in, no-cost Oracle VM Server for SPARC provides the flexibility and power of running multiple logical domains in a single server. Multiple Oracle Solaris Zones may be run within a single Oracle VM Server for SPARC logical domain.
  • Dimensions
  • •Height: 215 mm (8.5 in.); 5U
  • •Width: 445 mm (17.5 in.)
  • •Depth: 835 mm (32.9 in.)
