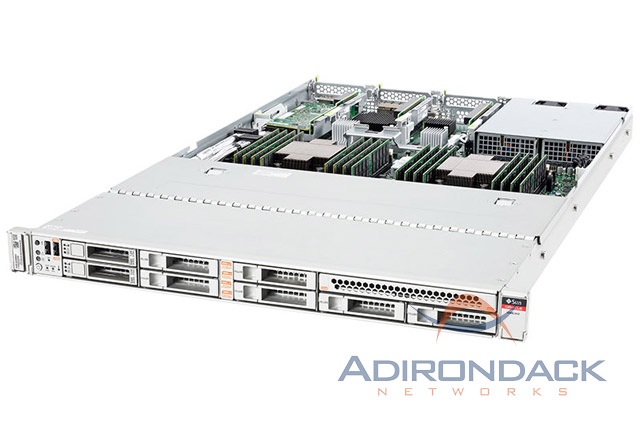

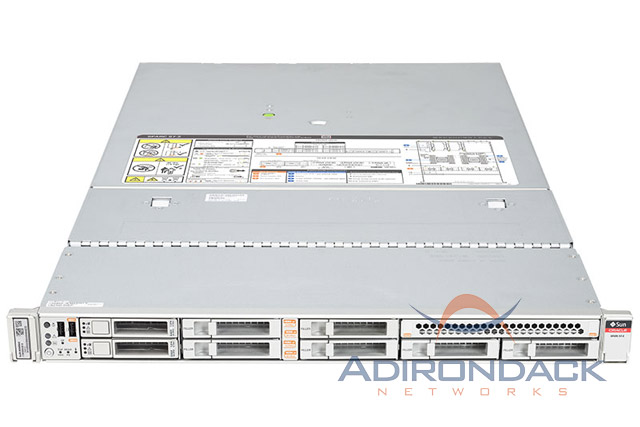

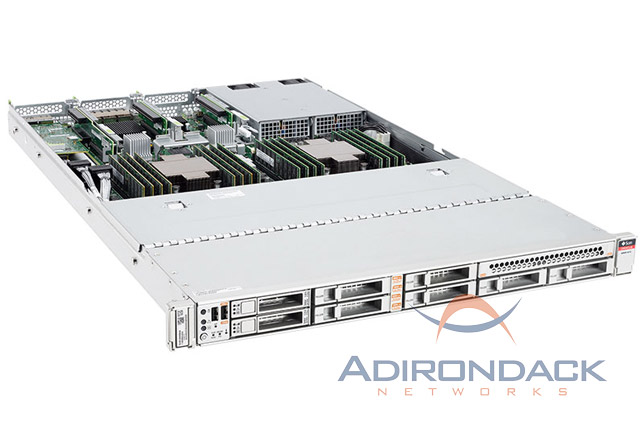

Oracle SPARC S7-2 Server

About the Oracle SPARC S7-2 Server

• Processor
• •Eight-core, 4.27 GHz SPARC S7 processor
• •Up to 64 threads per processor (up to 8 threads per core)
• •Four data analytics accelerators per processor, each supporting four concurrent in-memory query operations with decompression
• •Eight on-chip encryption instruction accelerators with direct nonprivileged support for 15 industry-standard cryptographic algorithms: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512 (one per core)
• •Eight floating-point units per processor (one per core)
• •One random number generator (one per processor)
• Cache Per Processor
• •Level 1: 16 KB instruction and 16 KB data per core
• •Level 2: 256 KB L2 I$ per four cores, 256 KB L2 D$ per core pair
• •Level 3: 64 MB L3$ on chip
• System Configurations
• •SPARC S7-2 servers are configured with one or two SPARC S7 processors, not expandable.
• •Eight dual inline memory module (DIMM) slots per processor support half and fully populated memory configurations using 16, 32, or 64 GB DDR4 DIMMs
  •     ○1,024 GB maximum memory configuration with 64 GB DIMMs and two processors
  • System Architecture
  • •SPARC V9 architecture, ECC protected
  • Inetrfaces
  • •Network Ports: Four 10GBase-T Ethernet ports (100 Mb/sec, 1 Gb/sec or 10 Gb/sec), full duplex only, autonegotiating
  • •Expansion bus: Three low-profile PCIe 3.0 x8 slots
  • •Management ports: One RJ45 serial port // One 1000Base-T port (10 Mb/sec, 100 Mb/sec or 1 Gb/sec)
  • •Other ports: Two front USB 2.0 ports
  • Internal Storage
  • •Controllers: One 12 Gb/sec SAS-3 controller
  • •One disk chassis option: Eight-disk chassis: Eight 2.5-inch drive bays, four drive bays support NVMe drives
  • •Choice of three 2.5-inch drives: 600 GB or 1,200 GB SAS-3 hard disk drives // 400 GB SAS-3 solid-state drives // 3.2 TB NVMe solid-state drives
  • •SAS/NVMe mixing supported
  • Memory capacity
  • •Eight dual inline memory module (DIMM) slots per processor support half and fully populated memory configurations using 16, 32, or 64 GB DDR4 DIMMs.
  • • • Power Supplies
      • •Two hot-swappable AC 800 or 1,200 W redundant (N+1) power supplies
      • •Voltage 100 to 120 VAC at 800 W, frequency 50/60 Hz
      • •Voltage 200 to 240 VAC at 1,200 W, frequency 50/60 Hz
      • •Max. operating input current at 100/200 VAC: 8.6/4.1 A
      • •Max. operating input power at 100/200 VAC: 851/819 W
      • Key Ras Features
  • •Hot-plug disk drives
  • •Redundant, hot-swappable power supplies and fans
  • •Environmental monitoring
  • •Message retry, cache, and memory error correction
  • •Oracle Solaris ZFS storage RAID
  • •Fault Management Architecture including Predictive Self Healing―both are features of Oracle Solaris
  • Software
  • Operating System
  • Oracle recommends Oracle Solaris 11.3 or later for enhanced performance and functionality, including technologies enabled by Software in Silicon features
  • •Control domain: Oracle Solaris 11.3 or later
  • •The following versions are supported within guest domains:
    •     ○Oracle Solaris 11.3 or later
      •     ○Oracle Solaris 10 1/13*
        •     *Plus required patches
  • Virtualization
  • Built-in, no-cost Oracle VM Server for SPARC provides the flexibility and power of running multiple logical domains in a single server. Multiple instances of Oracle Solaris Zones, a feature of Oracle Solaris, may be run within a single Oracle VM Server for SPARC logical domain
  • Dimensions
  • •Height:43 mm (1.7 in.); 1U
  • •Width: 437 mm (17.2 in.)
  • •Depth: 737 mm (29 in.)
