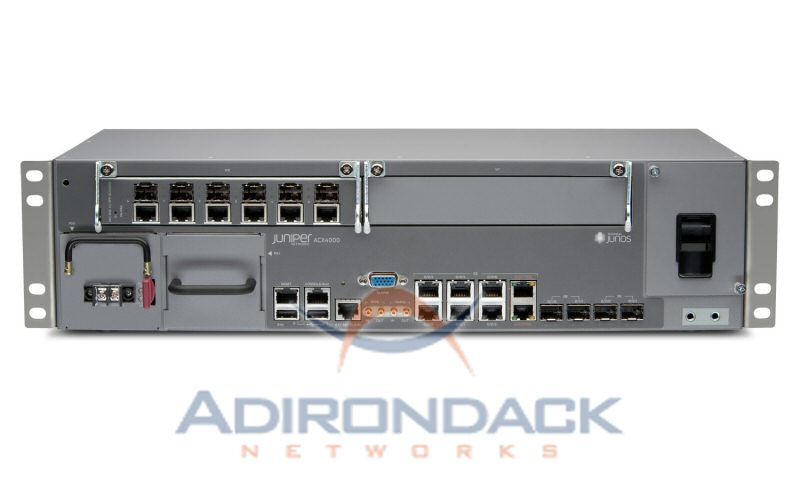

Juniper ACX4000 Universal Access Router

ACX4000 modular unit, 2x10GbE SFP+, 8xGbE copper with 2xPoE, 2xGbE SFP, 2.5 U, ETSI 300, redundant DC power, temperature hardened, Junos OS, two configurable MIC slots (optics sold separately)
ACX4000 DC
Manufacturer Juniper
Part Number(s):

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.

About the Juniper ACX4000 Universal Access Router

The ACX4000 platform for the Universal Access is an environmentally hardened, actively cooled, 2.5 U modular system that includes T1/E1 TDM ports, combination copper/fiber GbE ports and 10GbE SFP+ interfaces to provide a versatile access platform.

The ACX4000 is one of a family of next generation access routers that addresses the new network imperatives with an industry leading performance of up to 60Gbps, while enabling a seamless end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.

The Universal Access solution with ACX Series platforms is optimized to enhance the mobile subscriber experience while significantly improving network monetization for service providers. By delivering new levels of open SDK programmability, reliability, and scalability to the mobile network, the new Juniper Universal Access routing portfolio improves customer satisfaction while lowering the total cost of operating, maintaining and updating the network infrastructure.

The Universal Access solution redefines the service provider access network with support for seamless MPLS, comprehensive management with Junos Space (fault management, service monitoring, OAM), widely deployed and proven timing and synchronization technology and SDK-enabled programmability.

Feature Benefit
Flexible and adaptive service architecture
  • A service architecture that extends operational intelligence to the access network and can adapt and grow with business needs.
  • Junos OS-powered comprehensive feature set with support for carrier Ethernet services, L2, L3, MPLS, traffic engineering, and call admission control (CAC) support. With simplified service provisioning and operations, the ACX Series includes the functionality needed to deploy MPLS in the access network.
Rapid provisioning with superior management Easy, cost-effective, remote provisioning for the access with Junos Space network management platform with Network Activate. Support for fault management, extensive Operation, Administration, and Management (OAM), and service monitoring. Easy integration with third-party services and tools.
Scale and performance
  • Industry-leading performance of up to 60Gbps. High density GbE and 10GbE support to meet growing multi-generation bandwidth needs and support evolution to 3G/4G/LTE.
  • Wide interface range with T1/E1, GbE, 10GbE, and PoE+ support. With PoE+ support, there is no electrical cabling required for microwave/WiFi access devices and/or surveillance cameras.
Highest quality of experience (QoE) Using proven and widely deployed clocking technology, the ACX Series platforms deliver support for SyncE and 1588-2008 to deliver enhanced subscriber experience.
Open access system Juniper Networks Junos SDK support with easy extensibility to hardware and software services. With open APIs, service provisioning can be easily customized and integrated with third-party services and tools.
Environmental hardening The fixed 1 U ACX Series models are environmentally hardened and support passive cooling for outdoor deployments.
SPECIFICATIONS
System Throughput up to 60Gbps
Interface Support
  • 8xGbE Combination ports, Copper or SFP (with PoE+ on two ports)
  • 2x10GbE SFP+
  • 2.5 U
  • ETSI 300
  • 2 MIC slots with MIC options: 6xGbE Combo (Copper PoE/Fiber)
  • 4xCHOC3/STM-1/1xCHOC12/STM-4
Dimensions (W x H x D) 17.5 x 4.375 x 9.25 in (44.5 x 11 x 23.5 cm)
Weight (lb/kg) Fully Configured 23.8 lb (10.82 kg) (Fully configured 2 PSU, 2MICs)
Power (DC)
  • -48V telco nominal or
  • -60V telco nominal or
  • +24 VDC nominal
Power (AC) 90 to 240 Volt AC
Maximum Power Draw 200W plus PoE power
Humidity 95% RH noncondensing
Noise level 33dBA at 27 degrees ambient temperature
Operating Temperature -40° to 158° F (-40° to 70° C)
