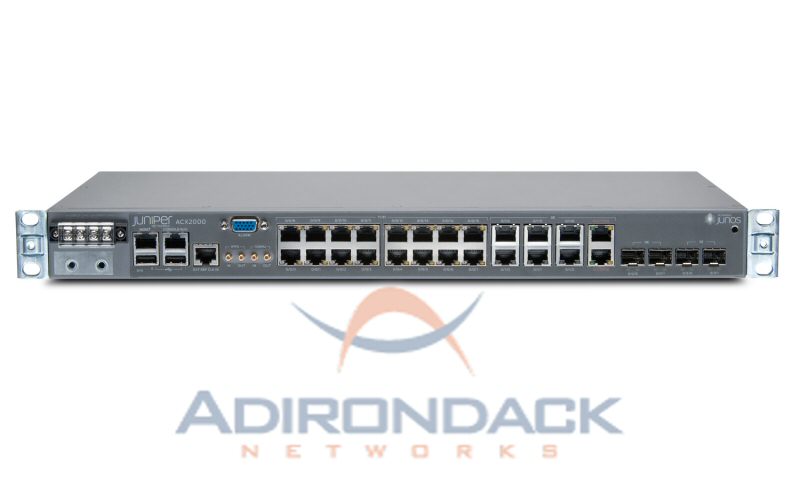

The environmentally-hardened ACX2000 access router with fan-less passive cooling provides a versatile access platform in a compact 1.75" (1 U) fixed form factor that includes TDM, GbE and 10GbE interfaces. The fixed port configuration includes 16 TDM (T1/E1) interfaces, eight copper GbE interfaces with PoE+ (65W) capability on two ports, two GbE SFP ports and two 10 GbE SFP+ ports.
The ACX2000 is one of a family of next generation access routers that addresses the new network imperatives with an industry leading performance of up to 60Gbps, while enabling a seamless end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The Universal Access solution with ACX Series platforms is optimized to enhance the mobile subscriber experience while significantly improving network monetization for service providers. By delivering new levels of open SDK programmability, reliability, and scalability to the mobile network, the new Juniper Universal Access routing portfolio improves customer satisfaction while lowering the total cost of operating, maintaining and updating the network infrastructure.
The Universal Access solution redefines the service provider access network with support for seamless MPLS, comprehensive management with Junos Space (fault management, service monitoring, OAM), widely deployed and proven timing and synchronization technology and SDK-enabled programmability.
|Flexible and adaptive service architecture|| |
|Rapid provisioning with superior management||Easy, cost-effective, remote provisioning for the access with Junos Space network management platform with Network Activate. Support for fault management, extensive Operation, Administration, and Management (OAM), and service monitoring. Easy integration with third-party services and tools.|
|Scale and performance|| |
|Highest quality of experience (QoE)||Using proven and widely deployed clocking technology, the ACX Series platforms deliver support for SyncE and 1588-2008 to deliver enhanced subscriber experience.|
|Open access system||Juniper Networks Junos SDK support with easy extensibility to hardware and software services. With open APIs, service provisioning can be easily customized and integrated with third-party services and tools.|
|Environmental hardening|| |
The fixed 1 U ACX Series models are environmentally hardened and support passive cooling for outdoor deployments.
|System Throughput||up to 60Gbps|
|Interface Support|| |
|Dimensions (W x H x D)||17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)|
|Weight (lb/kg) Fully Configured||8.3 lb (3.77 kg)|
|Power (DC)|| |
|Maximum Power Draw||70W plus PoE power|
|Humidity||95% RH noncondensing|
|Noise level||0dB (acoustic noise) (negligible - only passive cooling is used)|
|Operating Temperature||-40° to 149° F (-40° to 65° C)|
Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.
The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.
If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.GET AN MAINTENANCE QUOTE
If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.GET A BUY-OUT QUOTE
Adirondack Networks is a leading provider of new, refurbished and used Juniper ACX2000 Universal Access Router hardware. We specialize in Juniper Routers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the Juniper ACX2000 Universal Access Router to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.
Contact us if you have questions or need more information on Part#:
Adirondack Networks also offers extended warranties on the Juniper ACX2000 Universal Access Router and other Juniper Routers. Contact us for options and pricing.
