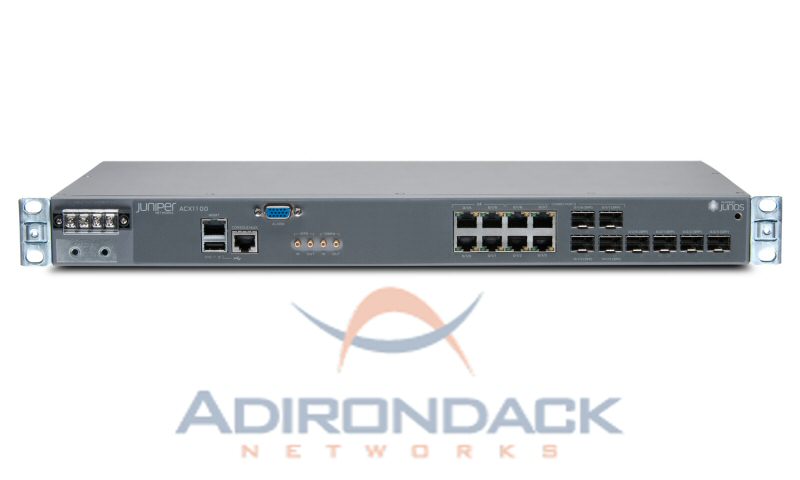

Juniper ACX1100 Universal Access Router

ACX1100 unit, 12xGbE, 1 U, ETSI 300, dual feed DC power, temperature hardened, passively cooled, Junos OS (optics sold separately)
ACX1100 DC
Manufacturer Juniper
Part Number(s):

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.

About the Juniper ACX1100 Universal Access Router

The environmentally-hardened ACX1100 access router with fan-less passive cooling and a compact 1.75" (1 U) form factor is an Ethernet only access platform with a mix of copper and fiber GbE interfaces. The fixed port configuration includes, four copper 10/100/1000 Mbps interfaces, four GbE combination ports (copper or fiber interfaces) and four GbE SFP ports.

Juniper Networks ACX Series Universal Access Routers is one of a family of next generation access routers that addresses the new network imperatives with industry leading performance of up to 60Gbps, while enabling a seamless end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.

The Universal Access solution is optimized to enhance the mobile subscriber experience while significantly improving network monetization for service providers. By delivering new levels of programmability, reliability and scalability to the mobile network, Juniper's new Universal Access routing portfolio improves customer satisfaction while lowering the total cost of operating, maintaining and updating the network infrastructure.

The Universal Access solution redefines the service provider access network with support for seamless MPLS, comprehensive management with Junos Space (fault management, service monitoring, OAM), widely deployed and proven timing and synchronization and SDK-enabled programmability.



Feature Benefit
Flexible and adaptive service architecture
  • A service architecture that extends operational intelligence to the access network and can adapt and grow with business needs.
  • Junos OS-powered comprehensive feature set with support for carrier Ethernet services, L2, L3, MPLS, traffic engineering, and call admission control (CAC) support. With simplified service provisioning and operations, the ACX Series includes the functionality needed to deploy MPLS in the access network.
Rapid provisioning with superior management Easy, cost-effective, remote provisioning for the access with Junos Space network management platform with Network Activate. Support for fault management, extensive Operation, Administration, and Management (OAM), and service monitoring. Easy integration with third-party services and tools.
Scale and performance
  • Industry-leading performance of up to 60Gbps. High density GbE and 10GbE support to meet growing multi-generation bandwidth needs and support evolution to 3G/4G/LTE.
  • Wide interface range with T1/E1, GbE, 10GbE, and PoE+ support. With PoE+ support, there is no electrical cabling required for microwave/WiFi access devices and/or surveillance cameras.
Highest quality of experience (QoE) Using proven and widely deployed clocking technology, the ACX Series platforms deliver support for SyncE and 1588-2008 to deliver enhanced subscriber experience.
Open access system Juniper Networks Junos SDK support with easy extensibility to hardware and software services. With open APIs, service provisioning can be easily customized and integrated with third-party services and tools.
Environmental hardening The fixed 1 U ACX Series models are environmentally hardened and support passive cooling for outdoor deployments.
SPECIFICATIONS
System Throughput up to 60Gbps
Interface Support
  • 4xGbE Copper
  • 4xGbE Combo (Copper/Fiber)
  • 4xGbE (SFP)
Dimensions (W x H x D) 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
Weight (lb/kg) Fully Configured 7.8 lb (3.54 kg)
Power (DC)
  • -48V telco nominal or
  • -60V telco nominal or
  • +24 VDC nominal
Power (AC) N/A
Maximum Power Draw 65 W
Humidity 95% RH noncondensing
Noise level 0dB (acoustic noise) (negligible - only passive cooling is used)
Operating Temperature -40° to 158° F (-40° to 70° C)
