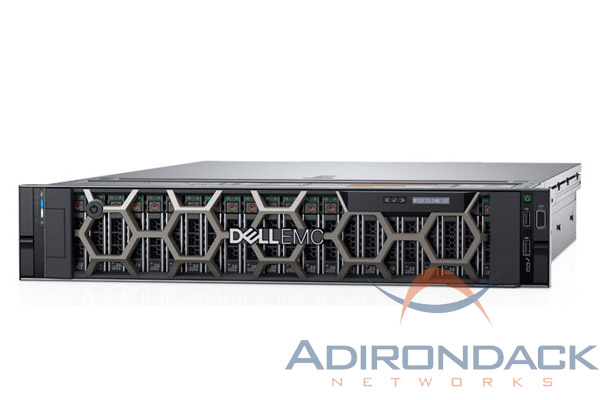

Dell PowerEdge R740xd Server

Increase storage scalability and performance with up to 24 NVMe drives and a total of 32 x 2.5” or 18 x 3.5”drives in a 2U dual-socket platform.
Manufacturer Dell
Part Number(s): PowerEdge-R740xd

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.

About the Dell PowerEdge R740xd Server

Processor

  • Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor

RAID Controllers

  • Internal Controllers
    • PERC H730p, H740p, HBA330, Software RAID (SWRAID) S140
  • Boot Optimized Storage Subsystem
    • HWRAID 2 x M.2 SSDs 120GB, 240 GB
  • External PERC (RAID)
    • H840
  • External HBAs (non-RAID)
    • 12 Gbps SAS HBA

Drive Bays

  • Front drive bays: Up to 24 x 2.5” SAS/SSD/NVMe, max 153TB Up to 12 x 3.5” SAS, max 120TB
  • Mid bay: Up to 4 x 3.5” drives , max 40TB Up to 4 x 2.5” SAS/SSD/NVMe, max 25TB
  • Rear drive bays: Up to 4 x 2.5” max 25TB // Up to 2 x 3.5” max 20TB

Fans

  • Up to 8 hot plugs fans with full redundancy

Ports

  • Network Daughter Card Options
    • 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
  • Front Ports
    • VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB
  • Rear Ports
    • VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port
  • Video Card
    • VGA, Up to 8 x Gen3 slots, Up to 4 x16

Memory

  • 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
  • Up to 12 NVDIMM, 192 GB Max
  • Supports registered ECC DDR4 DIMMs only

Power

  • Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
  • 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
  • Hot plug power supplies with full redundancy

Supported Operating Systems

  • Canonical® Ubuntu® LTS
  • Citrix® XenServer®
  • Microsoft Windows Server® with Hyper-V
  • Red Hat® Enterprise Linux
  • SUSE® Linux Enterprise Server
  • VMware® ESXi

Management

  • Embedded / At-Server
    • iDRAC9 with Lifecycle Controller (Express, Enterprise)
    • iDRAC Direct
    • iDRAC REST API with Redfish
    • Quick Sync 2 BLE/wireless module
  • Consoles
    • OpenManage Enterprise
    • OpenManage Essentials
    • OpenManage Power Center
  • Mobility
    • OpenManage Mobile
  • Tools
    • iDRAC Service Module
    • OpenManage Server Administrator
    • OpenManage Storage Services
    • Dell EMC Repository Manager
    • Dell EMC System Update
    • Dell EMC Server Update Utility
    • Dell EMC Update Catalogs
  • OpenManage Integrations
    • Microsoft Systems Center
    • VMware vCenter
    • BMC software (available from BMC)
  • OpenManage Connections
    • Nagios Core and Nagios XI
    • HPE Operations Manager i (OMi)
    • IBM Tivoli® Netcool/OMNIbus
    • IBM Tivoli® Network Manager IP Edition

Dimensions

  • Form Factor
    • Rack (2U)
  • Chassis Depth
    • 715.5 mm
