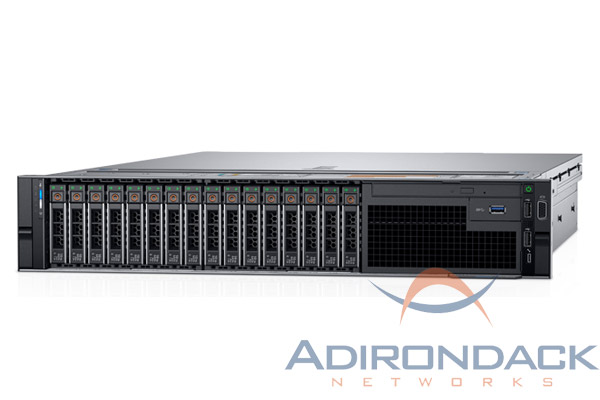

Dell PowerEdge R740 Server

Maximize application performance with the optimal mix of accelerator cards, storage and compute power in a 2U, 2-socket platform optimized for VDI.
Manufacturer Dell
Part Number(s): PowerEdge-R740

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please contact us.

About the Dell PowerEdge R740 Server

Processor

  • Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor

RAID Controllers

  • Internal Controllers
    • PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
  • Boot Optimized Storage Subsystem
    • HWRAID 2 x M.2 SSDs 120GB, 240 GB
  • External PERC (RAID)
    • H840
  • External HBAs (non-RAID)
    • 12 Gbps SAS HBA

Drive Bays

  • Front drive bays
    • Up to 16 x 2.5” SAS/SATA/SSD, max 60TB
    • Up to 8 x 3.5” SAS/SATA, max 80TB

Fans

  • Up to 6 hot plugs fans with full redundancy

Ports

  • Network Daughter Card Options
    • 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
  • Front Ports
    • Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC
  • Rear Ports
    • VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port
  • Direct Micro-USB Rear ports
    • Video, serial, 2 x USB 3.0, dedicated iDRAC network port
  • Video Card
    • VGA
  • PCle
    • Up to 8 x Gen3 slots, Up to 4 x16

Memory

  • 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
  • Up to 12 NVDIMM, 192 GB Max
  • Supports registered ECC DDR4 DIMMs only

Power

  • Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
  • 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan
  • Hot plug power supplies with full redundancy

Supported Operating Systems

  • Canonical® Ubuntu® LTS
  • Citrix® XenServer®
  • Microsoft Windows Server® with Hyper-V
  • Red Hat® Enterprise Linux
  • SUSE® Linux Enterprise Server
  • VMware® ESXi

Management

  • Embedded / At-Server
    • iDRAC9 with Lifecycle Controller (Express, Enterprise)
    • iDRAC Direct
    • iDRAC REST API with Redfish
    • Quick Sync 2 BLE/wireless module
  • Consoles
    • OpenManage Enterprise
    • OpenManage Essentials
    • OpenManage Power Center
  • Mobility
    • OpenManage Mobile
  • Tools
    • iDRAC Service Module
    • OpenManage Server Administrator
    • OpenManage Storage Services
    • Dell EMC Repository Manager
    • Dell EMC System Update
    • Dell EMC Server Update Utility
    • Dell EMC Update Catalogs
  • OpenManage Integrations
    • Microsoft Systems Center
    • VMware vCenter
    • BMC software (available from BMC)
  • OpenManage Connections
    • Nagios Core and Nagios XI
    • HPE Operations Manager i (OMi)
    • IBM Tivoli® Netcool/OMNIbus
    • IBM Tivoli® Network Manager IP Edition

Dimensions

  • Form Factor
    • Rack (2U)
  • Chassis Depth
    • 715.5 mm

Adirondack Networks Hardware Warranty:

Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.

Extended Hardware Maintenance Warranty:

The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.

Warranty Repair:

If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.

GET AN MAINTENANCE QUOTE

Sell us your IT Equipment

We Buy Used Computer & Networking Hardware

If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.

GET A BUY-OUT QUOTE

About us

Adirondack Networks is a leading provider of new, refurbished and used Dell PowerEdge R740 Server hardware. We specialize in Dell PowerEdge Rack Servers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the Dell PowerEdge R740 Server to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find PowerEdge-R740 hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.

Contact us if you have questions or need more information on Part#: PowerEdge-R740

Adirondack Networks also offers extended warranties on the Dell PowerEdge R740 Server and other Dell PowerEdge Rack Servers. Contact us for options and pricing.
