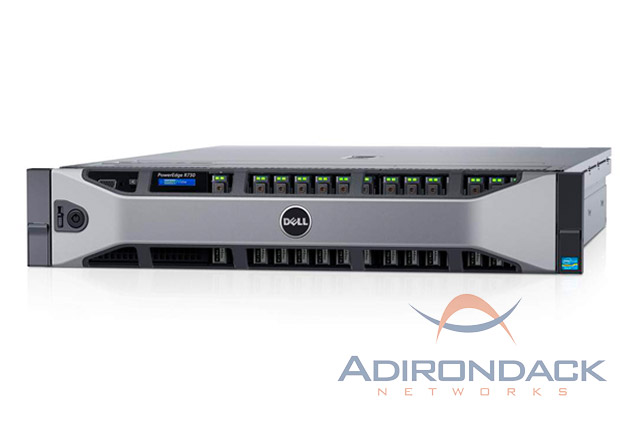

Dell PowerEdge R730 Server

The incredible versatility of the PowerEdge R730 server delivers outstanding functionality in just 2U of rack space. With the combination of powerful processors, large memory, fast storage options and GPU accelerator support, the R730 performs exceptionally well in a number of demanding environments
PowerEdge R730 Server
Manufacturer Dell
Part Number(s): PowerEdge-R730

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.

About the Dell PowerEdge R730 Server

Processors - Intel® Xeon®

Operating Systems - Microsoft® Windows Server® 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Novell® SUSE® Linux Enterprise Server, Red Hat® Enterprise Linux, VMware® ESX®

Chipset - Intel C610 series chipset

Memory - Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Embedded Hypervisor (Optional) - Microsoft® Windows Server® 2012, with Hyper-V®, Citrix® XenServer®, VMware® vSphere® ESXiTM

Storage - HDD: SAS, SATA, nearline SAS; SSD: SAS, SATA, 16 x 2.5” – up to 29TB via 1.8TB hot-plug SAS hard drives, 8 x 3.5” – up to 64TB via 8TB hot-plug nearline SAS hard drives

Drive Bays - Up to 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA, Up to 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA

Slots -

  • Slot configuration #1:
    Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
    Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
    Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
    Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
    Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
    Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
    Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
    Dedicated RAID card slot

    Slot configuration #2:
    Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
    Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
    Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
    Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
    Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
    Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
    Dedicated RAID card slot

Internal RAID Controllers - PERC S130, PERC H330, PERC H730, PERC H730P

External RAID Contollers - PERC H830

Network Controller - 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb

Power - 1100W AC, 86 mm (Platinum), 1100W DC, 86 mm (Gold), 750W AC, 86 mm (Platinum), 750W AC, 86 mm (Diamond), 495W AC, 86 mm (Platinum)

Chassis - Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)

Communications - Broadcom® 5719 quad-port 1Gb NIC, Broadcom 5720 dual-port 1Gb NIC, Broadcom 57810 dual-port 10Gb DA/SFP+ CNA, Broadcom 57810 dual-port 10Gb Base-T network adapter, Intel® Ethernet I350 dual-port 1Gb server adapter, Intel Ethernet I350 quad-port 1Gb server adapter, Intel Ethernet X540 dual-port 10GBASE-T server adapter, Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter, Mellanox ConnectX-3 dual-port 40Gb Direct, Attach/QSFP server network adapter, Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA, Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA, Emulex LPe16000B, single-port 16Gb Fibre Channel HBA, Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA, Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA, QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA, QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA, Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height, Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Management - OpenManage Essentials console, iDRAC8 with Lifecycle Controller, iDRAC Direct, iDRAC Quick Sync, OpenManage Mobile

Availability - ECC memory, Hot-plug hard drives, Hot-plug redundant cooling, Hot-plug redundant power, iDRAC8, Internal Dual SD Module, Single Device Data Correction (SDDC), Spare Rank, Tool-less chassis, Support for high availability clustering and virtualization, Proactive systems management alerts, iDRAC8 with Lifecycle Controller
