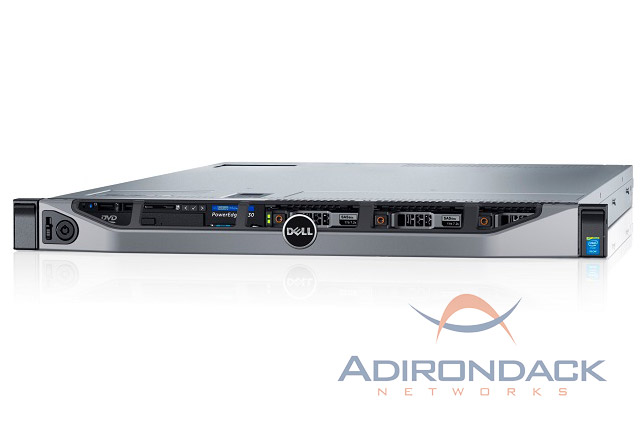

Dell PowerEdge R630 Server

With 2U performance packed into a compact 1U chassis, the PowerEdge R630 two-socket rack server delivers uncompromising density and productivity. Part of the 13th generation of PowerEdge servers, the R630 is ideal for virtualization, driving large business applications or running transactional databases.
PowerEdge R630 Server
Manufacturer Dell
Part Number(s): PowerEdge-R630

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please contact us.

About the Dell PowerEdge R630 Server

Processors - Intel® Xeon®

Operating Systems - Microsoft® Windows Server® 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Novell® SUSE® Linux Enterprise Server, Red Hat® Enterprise Linux, VMware® ESX®

Chipset - Intel C610 series chipset

Memory - Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Embedded Hypervisor (Optional) - Microsoft® Windows Server® 2012, with Hyper-V®, VMware® vSphere® ESXi™, Citrix® XenServer®

Storage - HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe, 24 x 1.8” SSD – up to 23TB via 0.96TB hot-plug SATA SSD, 10 x 2.5” – up to 18TB via 1.8TB hot-plug SAS HDD, 8 x 2.5” – up to 14TB via 1.8TB hot-plug SAS HDD

Drive Bays - Up to 24 x 1.8” SATA SSD, Up to 10 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe, Up to 8 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA

Slots -

2 CPUs, 3 slots
Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
Slot 2: Half length, half height - PCIe 3.0 x8 (x16 connector)
Slot 3: Half length, half height - PCIe 3.0 x16 (x16 connector)
2CPUs, 2 slots
Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector)
1CPU, 2 slots
Slot 1: Half length, half height - PCIe 3.0 x8 (x16 connector)
Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector

Internal RAID Controllers - PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P

External RAID Contollers - PERC H830

Network Controller - 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb

Power - 1100W AC, 86 mm (Platinum), 1100W DC, 86 mm, 750W AC, 86 mm (Platinum), 750W AC, 86 mm (Titanium), 495W AC, 86 mm (Platinum)

Communications - Broadcom® 5719 quad-port 1Gb NIC, Broadcom 5720 dual-port 1Gb NIC, Broadcom 57810 dual-port 10Gb DA/SFP+ CNA, Broadcom 57810 dual-port 10Gb Base-T network adapter, Intel® Ethernet I350 dual-port 1Gb server adapter, Intel Ethernet I350 quad-port 1Gb server adapter, Intel Ethernet X540 dual-port 10GBASE-T server adapter, Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter, Mellanox ConnectX-3 dual-port 40Gb Direct, Attach/QSFP server network adapter, Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA, Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA, Emulex LPe16000B, single-port 16Gb Fibre Channel HBA, Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA, Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA, QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA, QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA, Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height, Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Remote Management - iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade)16GB vFlash media (upgrade), iDRAC Quick Sync

Systems Management - IPMI 2.0 compliant, Dell OpenManage Essentials; Dell OpenManage Mobile, Dell OpenManage Power Center

Dell OpenManage Integrations - Dell OpenManage Integration Suite for Microsoft System Center, Dell OpenManage Integration for VMware® vCenter

Dell OpenManage Connections - HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management, Dell OpenManage for Oracle Database Manager

Availability - ECC memory, Hot-plug hard drives, Hot-plug redundant cooling, Hot-plug redundant power, Internal Dual SD Module, Single Device Data Correction (SDDC), Spare Rank, Support for high availability clustering and virtualization, Proactive systems management alerts, iDRAC8 with Lifecycle Controller

Adirondack Networks Hardware Warranty:

Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.

Extended Hardware Maintenance Warranty:

The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.

Warranty Repair:

If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.

GET AN MAINTENANCE QUOTE

Sell us your IT Equipment

We Buy Used Computer & Networking Hardware

If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.

GET A BUY-OUT QUOTE

About us

Adirondack Networks is a leading provider of new, refurbished and used Dell PowerEdge R630 Server hardware. We specialize in Dell PowerEdge Rack Servers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the Dell PowerEdge R630 Server to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find PowerEdge-R630 hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.

Contact us if you have questions or need more information on Part#: PowerEdge-R630

Adirondack Networks also offers extended warranties on the Dell PowerEdge R630 Server and other Dell PowerEdge Rack Servers. Contact us for options and pricing.
