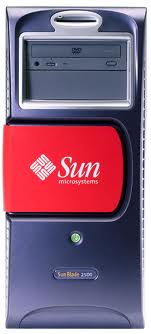

Sun Blade 2500 Workstation (Red)

Sun Blade 2500 Workstation (Red)
SunBlade2500
Manufacturer Oracle Sun
Part Number(s): SunBlade2500

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.

About the Sun Blade 2500 Workstation (Red)

Description:
The Sun Blade 2500 workstation provides outstanding performance for visually demanding graphics applications through support for the Sun XVR-1200, Sun XVR-600, or Sun XVR-100 graphics accelerators. Featuring six 64-bit PCI slots, built-in USB and IEEE 1394a (FireWire) ports, and on-board Gigabit Ethernet (10/100/1000Base-T), the Sun Blade 2500 workstation also enables high-throughput connectivity to a wide range of technology-leading peripherals



Specifications:

  • Processor : Up to two 1.6-GHz UltraSPARC IIIi processors
  • Main Memory :
    • Up to 16 GB of DDR memory DDR-266 SDRAM capacity (8 x 2 GB DIMMs)
    • 8 DIMM slots, memory DIMM installation required in pairs
    • 2 CPUs required for maximum memory utilization, four slots per CPU Network : 10/100/1000-Mbps Base-T Ethernet port
  • Expansion bus : Six full-length 64-bit PCI slots:
    • three slots operating at 66MHz
    • three slots operating at 33MHz
  • Internal storage: Up to two 146-GB, 10,000 RPM, Ultra 320 SCSI drives
  • Graphics and Imaging: The Sun Blade 2500 workstation supports an overall total of 3 graphics cards. It supports up to two Sun XVR-1200 graphics accelerators, up to three Sun XVR-600 graphics accelerators, or up to three Sun XVR-100.
  • Operating System: Not Included



Component List

Backplane/Centerplane
Option # Manufacturing
Part #
Description
n/a 375-3097  SCSI Backplane
Batteries
Option # Manufacturing
Part #
Description
n/a 370-5949  3V Lithium Battery CR2032
CPU Module
Option # Manufacturing
Part #
Description
n/a 527-1088 1.280GHz USIIIi
Cables
Option # Manufacturing
Part #
Description
X311L  Localized Power Cord Kit - North America/Asia
180-1097  IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black
X312L  Localized Power Cord Kit - Continental Europe
180-1993  IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black
X314L  Localized Power Cord Kit - Swiss
7049124  IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
X317L  Localized Power Cord Kit - U.K.
180-1997  IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black
X383L  Localized Power Cord Kit - Danish
180-1995  IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black
X384L  Localized Power Cord Kit - Italian
180-1996  IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black
X386L  Localized Power Cord Kit - Australian
180-1998  IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black
n/a 180-1994  IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black
n/a 530-1819  Localized Power Cord Kit - Danish
Card/Reader
Option # Manufacturing
Part #
Description
n/a 370-5018  Smart Card Reader
Communication
Option # Manufacturing
Part #
Description
X1155A  370-2728  High Speed Serial Interface PCI (HSI/P) 2.0
X1157A  501-3028  SunATM-155/MFiber PCI 4.0
X1158A  501-3027  SunATM-155/UTP PCI 4.0
X1159A  501-3029  SunATM-622/MFiber PCI 4.0
X2156A  375-0100  Serial Asynchronous Interface PCI (SAI/P) 3.0
X4011A  501-6039  Crypto Accelerator 4000 UTP (copper)
X4012A  501-6040  Crypto Accelerator 4000 MMF (fiber)
X4111A  501-6039  Crypto Accelerator 4000 UTP (copper)
X4112A  501-6040  Crypto Accelerator 4000 MMF (fiber)
X6762A  375-3089  Crypto Accelerator 1000
Disks
Option # Manufacturing
Part #
Description
XRA-SC1CA-36G10K  540-5996  36.4GB - 10000 RPM, Disk Assembly with 1 Bracket and 1 of the following disks:
  • 390-0109
  • Seagate ST336607LC [ST336607LSUN36G]
    (36.4GB - 10000 RPM - SCSI Disk)
  • 390-0111
  • Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G]
    (36.4GB - 10000 RPM - SCSI Disk)
  • 390-0156
  • Fujitsu MAP3367NC [MAP3367N SUN36G]
    (36.4GB - 10000 RPM - SCSI Disk)
  • 540-3024
  • 1" SPUD Bracket
XRA-SC1CA-73G10K  540-6289  73.4GB - 10000 RPM, Disk Assembly with 1 bracket and 1 of the following disks:
  • 390-0157
  • Fujitsu MAP3735NC [MAP3735N SUN72G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0175
  • Fujitsu MAT3073NC [MAT3073N SUN72G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0252
  • Fujitsu MAW3073NC [MAW3073NCSUN73G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 540-3024
  • 1" SPUD Bracket
n/a 540-5456  73.4GB - 10000 RPM, Disk Assembly with 1 SPUD bracket, and 1 of the following disks:
  • 390-0106
  • Seagate ST373307LC [ST373307LSUN72G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0108
  • Hitachi DK32EJ-72NC [DK32EJ72NSUN72G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0157
  • Fujitsu MAP3735NC [MAP3735N SUN72G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0174
  • Seagate ST373207LC [ST373207LSUN72G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0175
  • Fujitsu MAT3073NC [MAT3073N SUN72G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0176
  • Hitachi HUS103073FL3800 [HUS10733ASUN72G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0252
  • Fujitsu MAW3073NC [MAW3073NCSUN73G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0265
  • Hitachi HUS103073FL3800 [HUS10733ASUN72]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 390-0275
  • Seagate ST373207LC [ST373207LSUN72G]
    (73.4GB - 10000 RPM - SCSI Disk)
  • 540-3024
  • 1" SPUD Bracket
Ethernet
Option # Manufacturing
Part #
Description
X1033A  501-5019  Sun FastEthernet PCI Adapter (FE/P) 2.0
X1034A  501-5406  Quad FastEthernet PCI (QFE/P)
X1141A  501-4373  Gigabit Ethernet PCI (GBE/P) 2.0
X1150A  501-5902  Sun GigaSwift Ethernet UTP (Copper)
X1151A  501-5524  Sun GigaSwift Ethernet MMF (Fiber)
X3150A  501-5902  Sun GigaSwift Ethernet UTP (Copper)
X3151A  501-5524  Sun GigaSwift Ethernet MMF (Fiber)
X4150A  501-6719  GigaSwift Ethernet UTP (GCS)
X4151A  501-6762  GigaSwift Ethernet MMF (GFS)
X4444A 1  501-6522  Quad GigaSwift Ethernet UTP (QGE)
X4445A  501-6738  Quad GigaSwift PCI-X Ethernet (QGE-X)

Fan
Option # Manufacturing
Part #
Description
n/a 370-5686  CPU Fan/Heatsink w/ clips
n/a 370-5726  Front Fan (92mm)
n/a 370-5727  Rear Fan (120mm)
n/a 370-7088  CPU Fan/Heatsink w/ clips
Fibre Channel
Option # Manufacturing
Part #
Description
SG-XPCI1FC-EM2  375-3304  2Gb PCI-X Single FC Host Adapter
SG-XPCI1FC-EM4-Z  375-3398  4Gb PCI-X Single FC Host Adapter
SG-XPCI1FC-QF2  375-3102  2Gb PCI Single FC Host Adapter
SG-XPCI1FC-QF4  375-3354  4Gb PCI-X Single FC Host Adapter
SG-XPCI1FC-QL2  375-3383  2Gb PCI-X Single FC Host Adapter
SG-XPCI2FC-EM2  375-3305  2Gb PCI-X Dual FC Host Adapter
SG-XPCI2FC-QF2  375-3108  2Gb PCI/PCI-X Dual FC Host Adapter
  • 240-4839
  • Low Profile Bracket
SG-XPCI2FC-QF2-Z  375-3363  2Gb PCI/PCI-X Dual FC Host Adapter
  • 240-4839
  • Low Profile Bracket
SG-XPCI2FC-QF4  7060890  4Gb PCI-X Dual FC Host Adapter
X6727A  375-3030  PCI Dual FC Host Adapter+
X6799A  375-3019  PCI Single FC Host Adapter
n/a 375-3294  4Gb PCI-X Dual FC Host Adapter

Graphics
Option # Manufacturing
Part #
Description
X3685A  375-3069  XVR-500 Graphics Accelerator
X3689A  375-3101  XVR-1200 Graphics Accelerator
X3769A  375-3126  XVR-100 Graphics Accelerator (32MB)
X3770A  375-3181  XVR-100 Graphics Accelerator (64MB)
X3780A  375-3153  XVR-600 Graphics Accelerator
X7296A  375-3290  XVR-100 Graphics Accelerator (64MB)

I/O
Option # Manufacturing
Part #
Description
n/a 375-3140  I/O Combo Card
Memory
Option # Manufacturing
Part #
Description
X7403A  1GB DDR Memory Option (2 × 512MB DIMMs)
370-4939 4  512MB Registered DDR DIMM (SPD 0.0)
X7404A  2GB DDR Memory Option (2 × 1GB DIMMs)
370-4940 5  1GB Registered DDR DIMM (SPD 0.0)
X7603A  1GB DDR Memory Option, SPD 1.0 (2 × 512MB DIMMs)
370-6202 512MB Registered DDR DIMM (SPD 1.0)
X7604A  2GB DDR Memory Option, SPD 1.0 (2 × 1GB DIMMs)
370-6203 1GB Registered DDR DIMM (SPD 1.0)
X7703A  1GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 512MB DIMMs)
370-7670 512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
X7704A  2GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 1GB DIMMs)
370-7671 1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
n/a 540-6229  Qty 2 - 512MB DDR, SPD 1.0 DIMMs (1GB Memory Assembly)
  • 370-6202
  • 512MB Registered DDR DIMM (SPD 1.0)
n/a 540-6230  Qty 2 - 1GB DDR, SPD 1.0 DIMMs (2GB Memory Assembly)
  • 370-6203
  • 1GB Registered DDR DIMM (SPD 1.0)
n/a 540-6400  Qty 2 - 512MB DDR, SPD 0.0/1.0 DIMMs (1GB Memory Assembly)
  • 370-7670
  • 512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
n/a 540-6401  Qty 2 - 1GB DDR, SPD 0.0/1.0 DIMMs (2GB Memory Assembly)
  • 370-7671
  • 1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
Miscellaneous
Option # Manufacturing
Part #
Description
X2134A  370-6200 Rear Guide Kit
375-3116  SunPCi III 1.4GHz Co-Processor Card, 256MB memory
X2136A  370-6200 Rear Guide Kit
375-3203  SunPCi IIIpro 1.6GHz Co-Processor Card, 256MB memory
X7066A  370-5463  SunPCi III 256MB SODIMM memory expansion
X7067A  370-5967  SunPCi III 512MB SODIMM memory expansion
Power
Option # Manufacturing
Part #
Description
n/a 300-1630  475 Watt AC Input Power Supply
Removable Media
Option # Manufacturing
Part #
Description
SG-XMEDDAT72-10  DAT 72 Data Cartridges, 10 pack
370-6908  DAT 72 Data Cartridge
SG-XTAPDAT72-5F68  380-1004  36-72GB 4 mm DAT 72 Tape Drive
X9004A  370-5693  48X CD-Writer
370-6699 Secondary IDE Cable 422702900009
n/a 370-5690  16X DVD-ROM Drive
SCSI
Option # Manufacturing
Part #
Description
SG-XPCI2SCSI-LM320  375-3191  PCI/PCI-X Dual Ultra320 SCSI Adapter
SGXPCI2SCSILM320-Z  7050788  PCI/PCI-X Dual Ultra320 SCSI Adapter
X1032A  501-5656  Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)
X2222A  501-5727  Dual FastEthernet / Dual SCSI PCI Adapter
X4422A  501-6635  Dual GigabitEthernet / Dual SCSI PCI Adapter
X5010A  375-0097  Single-Channel Single-Ended Ultra/Wide SCSI (PCI)
X6540A  375-0005  Dual Single-Ended Ultra/Wide SCSI (PCI)
X6541A  375-0006  Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)
X6758A  375-3057 8  PCI Dual Ultra3 SCSI Host Adapter (LVD)
n/a 375-3365  PCI/PCI-X Dual Ultra320 SCSI Adapter
System Board
Option # Manufacturing
Part #
Description
n/a 375-3044 9  Sun Blade 2500 Motherboard with 1 × 1.28GHz CPU (FRU)
  • 375-3105
  • Sun Blade 2500 0MB Motherboard w/o UltraSPARC IIIi
    • 370-5949
    • 3V Lithium Battery CR2032
    • 525-2024
    • NVRAM with Carrier
  • 527-1088
  • 1.280GHz USIIIi
n/a 375-3096 10  Sun Blade 2500 Motherboard with 2 × 1.28GHz CPUs (FRU)
  • 375-3105
  • Sun Blade 2500 0MB Motherboard w/o UltraSPARC IIIi
    • 370-5949
    • 3V Lithium Battery CR2032
    • 525-2024
    • NVRAM with Carrier
  • 527-1088
  • 1.280GHz USIIIi
