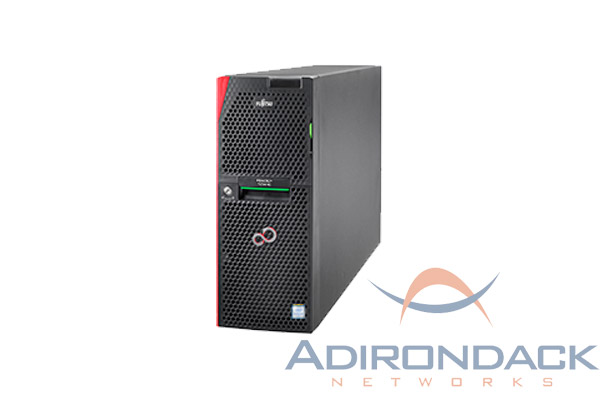

PRIMERGY TX2560 M2 Tower Server
The FUJITSU Server PRIMERGY TX2560 M2 offers maximum performance, best expandability and highest availability without any compromises.
Manufacturer Fujitsu
Part Number(s): TX2560-M2
Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.
Part Number(s): TX2560-M2
Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.
About the PRIMERGY TX2560 M2 Tower Server
Chipset
- Intel C612
Mainboard Type
- D3289-B
Product Type
- Dual Socket Tower Server
Processor
- Intel Xeon processor E5-2600 v4 product family
Memory
- 8 GB - 1536 GB, DIMM (DDR4)
Memory Protection
- Advanced ECC
- Memory Scrubbing
- SDDC
- Rank sparing memory support
- Memory Mirroring support
Drives (Optional)
- DVD-ROM, half height, SATA I
- DVD Super Multi, half height, SATA I
- LTO5HH Ultrium, 140 MB/s, 1,500 GB, SAS 6Gb/s
- DVD supermulti, ultraslim, SATA I
- Blu-ray Disc™ Triple Writer, ultraslim, SATA I
- RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
- LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
- LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
PCI-Express 3.0 x4
- 4 x Full height optional; slot 5+6 (CPU1, riser card); slot 11+12 (CPU2, riser card), 252mm length
PCI-Express 3.0 x8
- 5 x Full height ; slot 1 (CPU1, modular RAID, 167mm), slot 2 (CPU1, 167mm), opt. slot 4 (CPU1, opt. riser card, 252mm); opt. slot 8 (CPU2, 167mm), opt. slot 10 (CPU2, opt. riser card, 252mm)
PCI-Express 3.0 x16
- 3 x Full height ; slot 3 (CPU1), slot 8+9 (CPU2), 167mm lenght; please be aware, optional riser cards occupies slot 3 / 9
Slot Notes
- Slot 1: PCIe Gen3 x8 slot is dedicated for the modular RAID controller
- Up to 5 PCIe Gen3 slots are supported with the first processor, up to 10 PCIe Gen3 slots are supported with two processors
- Onboard slots (Slot1, 2, 3 & 7, 8, 9) support card lenght of up to 167mm; Slots on the optional riser cards (4, 5, 6, 10, 11, 12) support card lenght of up to 252mm
Accessible Drive Bays
- 3 x 5.25/1.6-inch
Optional Accessible Drives
- 3x 1.6x5.25" bays for an optical and/or backup drives
Storage Drive Bays
- 3.5-inch or 2.5-inch hot-plug SAS/SATA, or 2.5-inch non hot-plug PCIe
- 3.5-inch SAS/SATA: Max. 12x hot-plug HDD + opt. 2x 2.5-inch non hot-plug HDD/SSD
- 2.5-inch SAS/SATA: Max. 32x hot-plug HDD/SSD
- 2.5-inch PCIe: Max. 8x non hot-plug SSD
RAID Controller
- Fujitsu PRAID CP400i, RAID Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
- RAID level: 0, 1, 1E, 10, 5, 50, No FBU support
- Fujitsu PRAID EP400i, RAID 5/6 Ctrl., SAS/SATA/PCIe-NVMe 12 Gbit/s, 16 ports int.
- RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU based on LSI SAS3108
- Fujitsu PRAID EP420i, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
- RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108
- Fujitsu PRAID EP420i for SafeStore, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
- RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108
- Fujitsu PRAID EP440i FH, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
- RAID level: 0, 1, 10, 5, 50, 6, 60, 4 GB, Optional FBU based on LSI SAS3108
- Fujitsu PRAID EP440i FH TFM SafeStore, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int.
- RAID level: 0, 1, 10, 5, 50, 6, 60, 4 GB, Optional FBU based on LSI SAS3108
I/O Controller Onboard
- Intel C612, 1 x SATA connector for optical drive (ODD), 1x SATA connector for SATA-DOM
- DynamicLoM based on Emulex XE100 series
- Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller), IPMI 2.0 compatible
Trusted Platform Module (TPM)
- Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
Power Supply Configuration
- 1x hot-plug power supply or 2 x hot-plug power supply for redundancy
Active Power
- 748 W
Floor-stand (W x D x H)
- 177 x 777 x 456 mm
Weight
- Up to 35.5 kg
