Oracle x86 X8-2L Server

About the Oracle x86 X8-2L Server

Processor

• One or two processors from the Intel Xeon Scalable Processor Second Generation CPUs (two processors required for maximum memory and I/O configurations)
• Up to 24 cores per processor
• Intel® Xeon® Platinum 8268 processor: 2.9 GHz, 24 cores, 205 watts, XCC, 35.75 MB L3 cache
• Intel Xeon Platinum 8260 processor: 2.4 GHz, 24 cores, 165 watts, XCC, 35.75 MB L3 cache
• Intel Xeon Gold 5218 processor: 2.3 GHz, 16 cores, 125 watts, XCC, 22 MB L3 cache
• Intel Xeon Gold 5222 processor: 3.8 GHz, 4 cores, 105 watts, XCC, 16.50 MB L3 cache

Cache

• Level 1: 32 KB instruction and 32 KB data L1 cache per core
• Level 2: 1 MB shared data and instruction L2 cache per core
• Level 3: up to 1.375 MB shared inclusive L3 cache per core

Main Memory

• Twenty-four DIMM slots provide up to 1.5 TB of DDR4 DIMM memory
• RDIMM options: 16 GB at DDR4-2666 single rank and 32 GB at DDR4-2666 dual rank
• LRDIMM option: 64 GB at DDR4-2666 dual rank

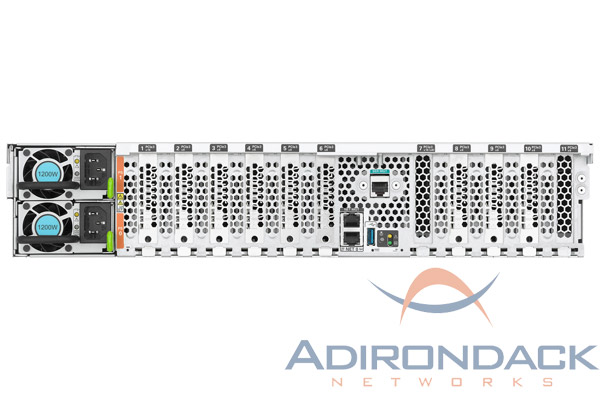

Standard I/O

• One 1 Gb Ethernet port and one serial RJ-45 port
• USB: two 3.0 USB ports (one rear, one internal)
• Expansion bus: 11 PCIe 3.0 slots, 1 x16 and 10 x8 slots
• Supports LP-PCIe cards including Ethernet, InfiniBand, FC, SAS HBAs, and flash

Storage

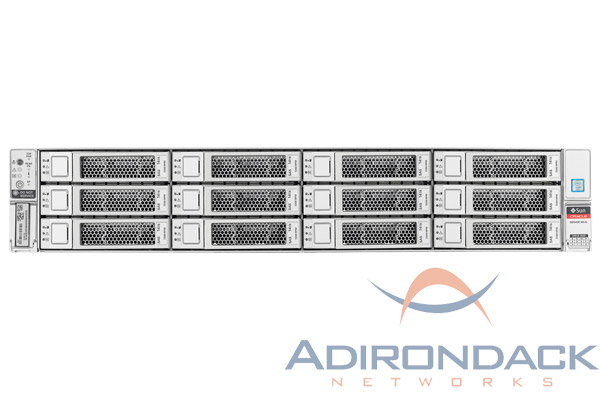

• Twelve 3.5-inch front hot-swappable disk bays plus two internal M.2 boot drives
• Disk bays can be populated with 3.5-inch 14 TB HDDs or 2.5-inch NVMe solid-state drives (SSDs)
• PCIe flash
• Sixteen-port 12 Gb/sec RAID HBA supporting levels: 0, 1, 5, 6, 10, 50, and 60 with 1 GB of DDR3 onboard memory with flash memory backup via embedded internal SAS-3 HBA PCIe card
• Eight-port 12 Gb/sec SAS HBA with direct access to up to eight internal SAS-3 HDDs (two per system required)

High-Bandwidth Flash

• All flash configuration—up to 102.4 TB in the all-flash configuration (maximum of 12 hot-swappable 6.4 TB NVMe SSDs and four 6.4 TB NVMe PCIe cards)
  • NVMe functionality in 3.5-inch disk bays requires an Oracle NVMe enabling kit that consumes one PCIe slot for every three NVMe devices (maximum of four kits)
• Standard configuration: up to 51.2 TB in the standard configuration (maximum of eight 6.4 TB NVMe PCIe cards)

Interfaces

• Dedicated 10/100/1000 M Base-T network management port
• In-band, out-of-band, and side-band network management access
• RJ-45 serial management port

Operating Systems

• Oracle Solaris
• Oracle Linux

Power

• Two 1,200 watt hot-swappable and redundant power supplies, rated 96% efficiency
• Rated line voltage: 100 to 240 VAC
• Rated input current 100 to 127 VAC 7.2 A and 200 to 240 VAC 3.4 A

Dimensions and Weight

• Height: 86.9 mm (3.4 in.)
• Width: 445.0 mm (17.5 in.)
• Depth: 759.4 mm (29.9 in.)
• Weight: 28.6 kg (63 lb.) fully populated
