Oracle x86 X7-2 Server
Engineered for Oracle Database and applications in SAN/NAS deployments, and for delivering infrastructure as a service (IaaS) in cloud and virtualized environments requiring optimal core density, memory footprint, and I/O bandwidth.
Manufacturer Oracle Sun
Part Number(s): x86-X7-2
Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.
Part Number(s): x86-X7-2
Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.

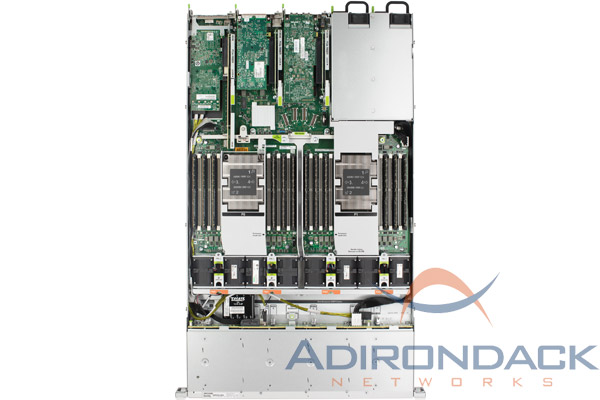

About the Oracle x86 X7-2 Server
Processor
- One or two processors from the Intel® Xeon® Processor Scalable Family processors (two processors required for maximum memory and I/O configurations)
- Up to 24 cores per processor
- Intel Xeon Platinum 8160 processor: 2.1 GHz, 24 cores, 150 watts, XCC, 33 MB L3 cache
- Intel Xeon Gold 6140 processor: 2.3 GHz, 18 cores, 140 watts, XCC, 24.75 MB L3 cache
- Intel Xeon Silver 4114 processor: 2.2 GHz, 10 cores, 85 watts, LCC, 13.75 MB L3 cache
- Intel Xeon Gold 6128 processor: 3.4 GHz, 6 cores, 115 watts, XCC, 19.25 MB L3 cache
Cache Per Processor
- Level 1: 32 KB instruction and 32 KB data L1 cache per core
- Level 2: 1 MB shared data and instruction L2 cache per core
- Level 3: up to 1.375 MB shared inclusive L3 cache per core
Main Memory
- Twenty-four DIMM slots provide up to 1.5 TB of DDR4 ECC DIMM memory
- RDIMM options: 16 GB at DDR4-2666 and 32 GB at DDR4-2666
- LRDIMM option: 64 GB at DDR4-2666
Standard I/O
- Two 1/10 GbE ports (RJ45) or two 1/10/25 GbE ports (SFP28)
- USB: two 3.0 USB ports (one rear, one internal)
- Expansion bus: four PCIe 3.0 slots: two x16 and two x8 (one internal) slots
- Supports LP-PCIe cards including Ethernet, InfiniBand, FC, and SAS HBAs

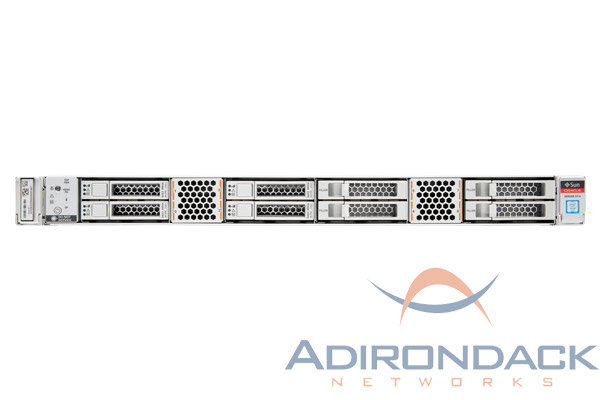

Storage
- Eight 2.5-inch front hot-swappable disk bays
- HDDs or conventional SSDs, or NVMe SSDs
- Optional: 12 Gb/sec SAS-3 RAID HBA supporting levels: 0, 1, 5, 6, 10, 50, and 60 with 2 GB of flashbacked write-back cache
High-Bandwidth Flash
- Uses NVM Express (NVMe) design that allows for flash to be front accessible and hot swappable
- Up to eight small form factor NVMe drives (6.4 TB per drive)
Interfeaces
- Dedicated 10/100/1000 M Base-T network management port
- In-band, out-of-band, and side-band network management access
- RJ45 serial management port
Operating Systems
- Oracle Solaris
- Oracle Linux

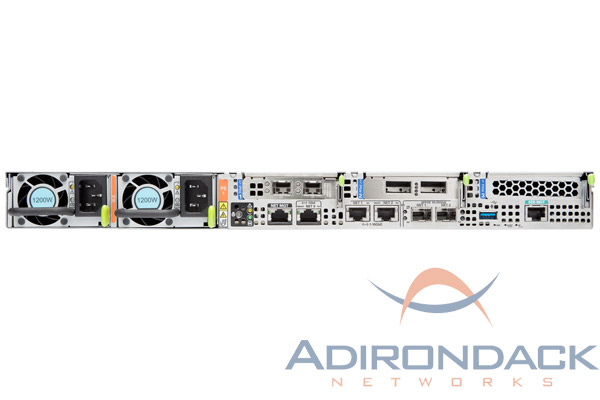

Power
- Two 1,200 watt hot-swappable and redundant power supplies, rated 96% efficiency
- Rated line voltage: 100 to 240 VAC
- Rated input current 100 to 127 VAC 7.2 A and 200 to 240 VAC 3.4 A
Dimensions and Weight
- Height: 42.6 mm (1.7 in.)
- Width: 436.5 mm (17.2 in.)
- Depth: 737.0 mm (29.0 in.)
- Weight: 18.1 kg (40.0 lb.) fully populated
