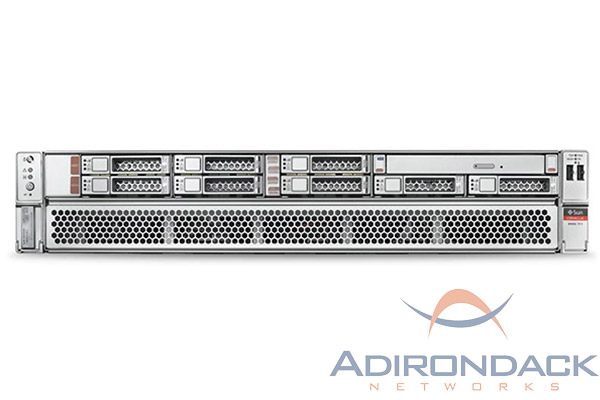

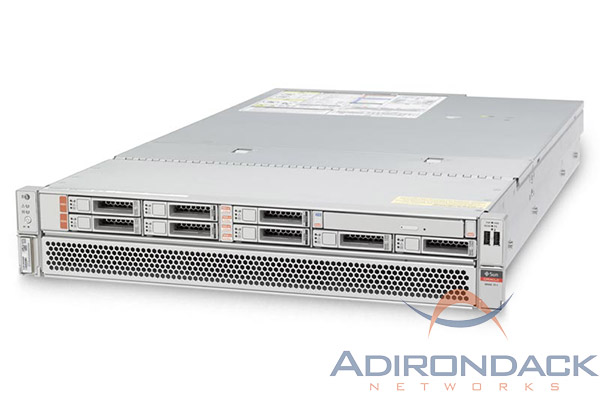

About the Oracle SPARC T7-1 Server TEST

Oracle’s SPARC T7-1 server is a single-processor system that enables organizations to respond to IT demands with extreme security and performance, at a lower cost compared to alternatives. It is ideal for a wide range of enterprise-class workloads, including database, applications, Java, and middleware, especially in a cloud environment. This system is based on the SPARC M7 processor, the first to use a revolutionary technology from Oracle referred to as Software in Silicon.

Oracle SPARC T7-1 Server Specifications

Processor

• Thirty-two core, 4.13 GHz SPARC M7 processor
• Up to 256 threads per processor (up to 8 threads per core)
• Eight accelerators per processor, each supporting four concurrent in-memory query operations with decompression
• Thirty-two on-chip encryption instruction accelerators with direct nonprivileged support for 15 industry-standard cryptographic algorithms: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512 (one per core)
• Thirty-two floating-point units per processor (one per core)
• One random number generator (one per processor)

Cache Per Processor

• Level 1: 16 KB instruction and 16 KB data per core
• Level 2: 256 KB L2 I$ per four cores, 256 KB L2 D$ per core pair
• Level 3: 64 MB L3$ on chip

System Configurations

• SPARC T7-1 servers are always configured with a single SPARC M7 processor, not expandable
• Sixteen dual inline memory module (DIMM) slots per processor supporting half and fully populated memory configurations using 16, 32, or 64 GB DDR4 DIMMs
• 1 TB maximum memory configuration with 64 GB DIMMs

System Architecture

• SPARC V9 architecture, ECC protected

Interfaces

• Network: four 10 GbE (100 Mbps/1 Gbps/10 Gbps), full duplex only, auto-negotiating
• Disks and internal storage: one SAS-3 controller providing hardware RAID 0, 1, and 1E/10 (ZFS file system provides higher levels of RAID)
• Expansion bus: six low-profile PCIe 3.0 (four x8 and two x16 or x8 wired) slots
• Ports: four external USB (two front USB 2.0 and two rear USB 3.0), one RJ45 serial management port, console 10/100 network port, VGA port

Mass Storage and Media

• Up to eight 600 GB or 1,200 GB 2.5 in SAS-3 drives
• Integrated DVD drive
• Optional internal storage may be installed within the standard drive bays
• 400 GB SSD drives, maximum of eight
• 1.6 TB NVMe drives, maximum of four

Power Supplies

• Two hot-swappable AC 1,000 W redundant (1 + 1) power supplies
• Voltage 200 to 240 VAC, frequency 50/60 Hz
• Maximum operating input current at 200 V AC: 6.3 A
• Maximum operating input power at 200 V AC: 1,230 W

Key Ras Features

• Hot-plug disk drives
• Redundant, hot-swappable power supplies and fans
• Environmental monitoring
• Extended ECC, error correction, and parity checking
• DIMM sparing enabled with fully populated memory slots, increasing system reliability and uptime
• Easy component replacement
• Integrated disk controller with RAID 0, 1 and 1E/10
• Fault Management Architecture including Predictive Self Healing ― both are features of Oracle Solaris

Software

• Operating System
• Oracle recommends Oracle Solaris 11.3 or later for enhanced performance and functionality, including features enabled by Software in Silicon technology
• Control domain: Oracle Solaris 11.3 or later
• The following versions are supported within guest domains:
  • Oracle Solaris 11.3 or later
  • Oracle Solaris 10 1/13*
  • Oracle Solaris 10 8/11*
  • Oracle Solaris 10 9/10*
  •   *Plus required patches

Dimensions

• Height: 87.6 mm (3.5 in.); 2U
• Width: 445.0 mm (17.5 in.)
• Depth: 737 mm (29 in.)
